GCS 24X120

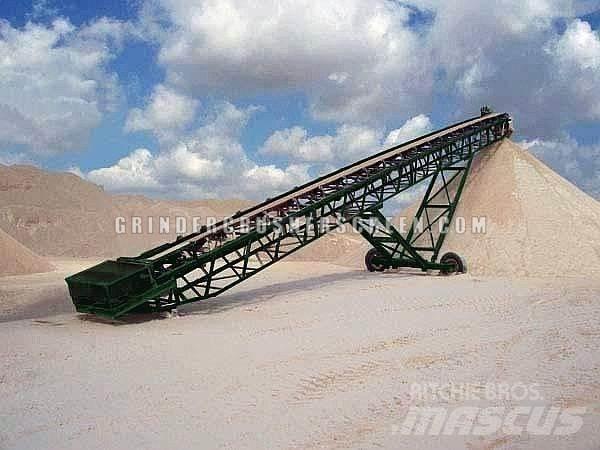

Description: New GCS Pit Portable 24x120' Radial Stacking Conveyor • Discharge Height: 37' High (18°) - 4 Adjustments • 36 Deep truss, 4x3 Cord Angle, 2x2x1/4 Lattice • 8 Pipe Axel, 8-Bolt 22 Tires & Wheels • Lagged head Pulley: 14 Diameter, 2 15/16 Shaft • Mid type Wrap Drive with Snub Roller • Winged Tail Pulley: 14 Diameter, 2 15/16 Shaft • 25 hp, TEFC, 1,800 RPM, 230/460 Volt • 5 CEMA B Idlers Options: Catwalk Power Travel Belt Scraper *Assembly Required Other sizes available including: 24x60, 24x80, 24x100, 30x60, 36x80, 36x100, 48x60, and more
