杰西博 3 CX

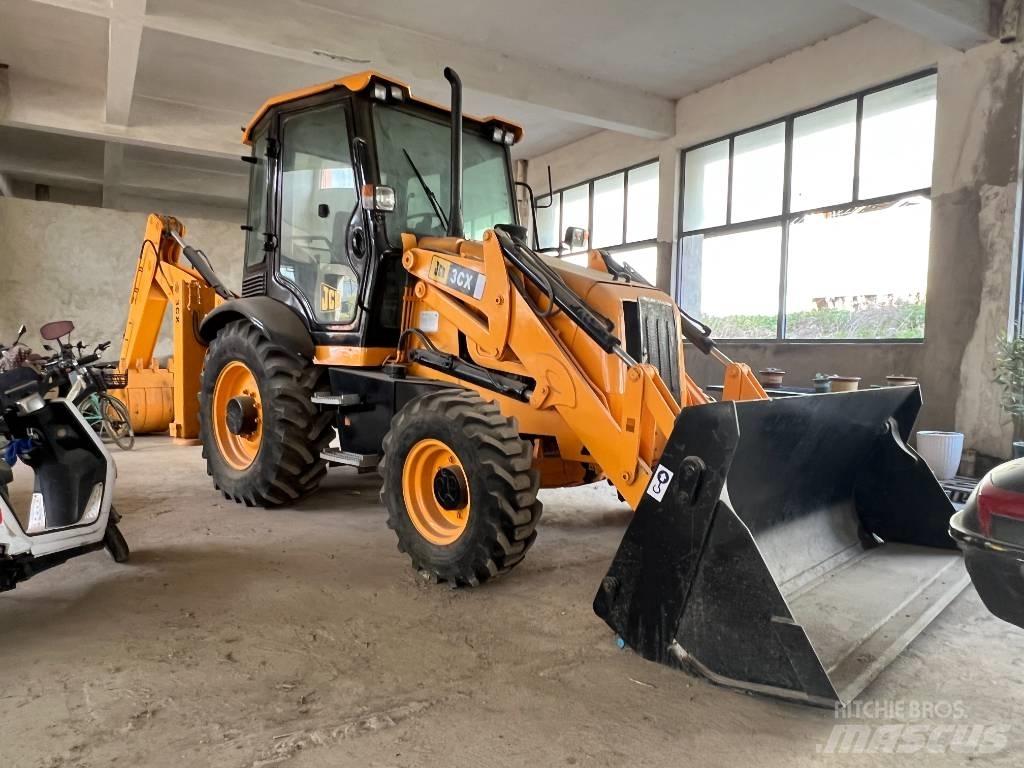

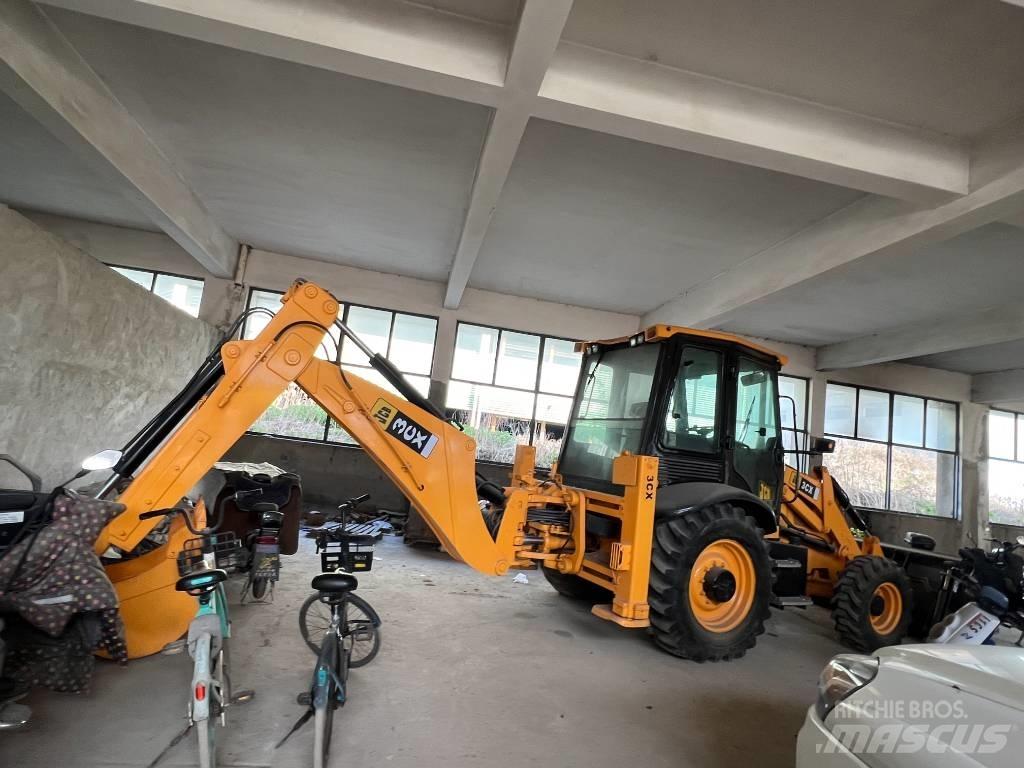

JCB 3CX BACKHOE LOADER – TECHNICAL SPECIFICATIONS Operating Weight: 7,650 kg (16,865 lbs) Engine: JCB EcoMax 444 (Stage V/Tier 4 Final) Power: 74 hp (55 kW) @ 2,200 rpm Torque: 310 Nm (229 lb-ft) @ 1,300 rpm Transmission: 4x4 Synchro Shuttle (4F/4R) Bucket Capacity: 1.0 m³ (1.3 yd³) Breakout Force: 62 kN (13,937 lbf) Loader Lift Height: 3,650 mm (12') Loader Reach: 1,060 mm (3'6") Digging Depth: 5,370 mm (17'7") Reach at Ground Level: 6,020 mm (19'9") Bucket Digging Force: 48 kN (10,790 lbf) Swing Angle: 180° (360° optional)
