曼尼通 150 AET JC

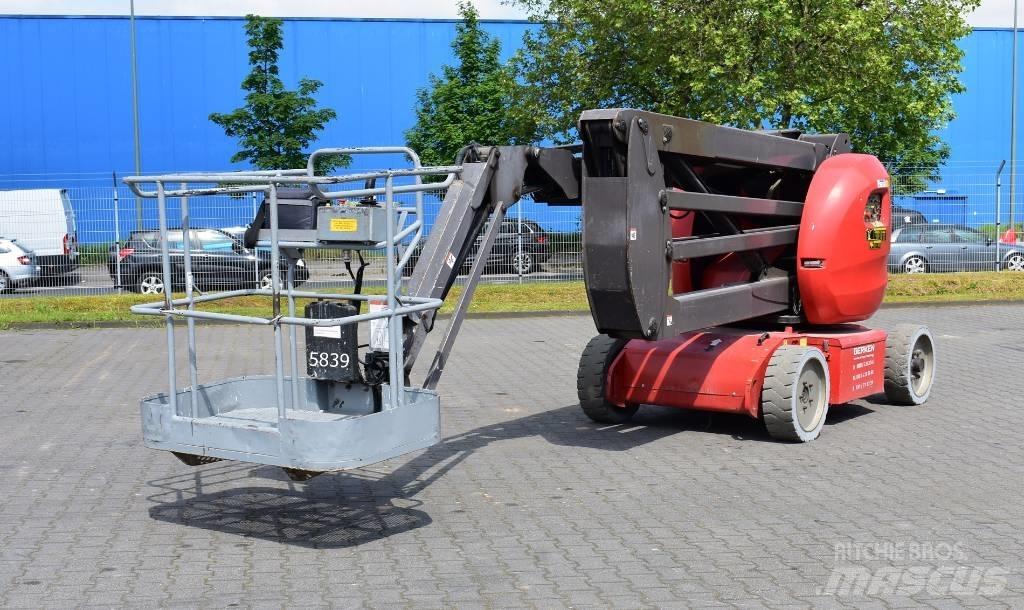

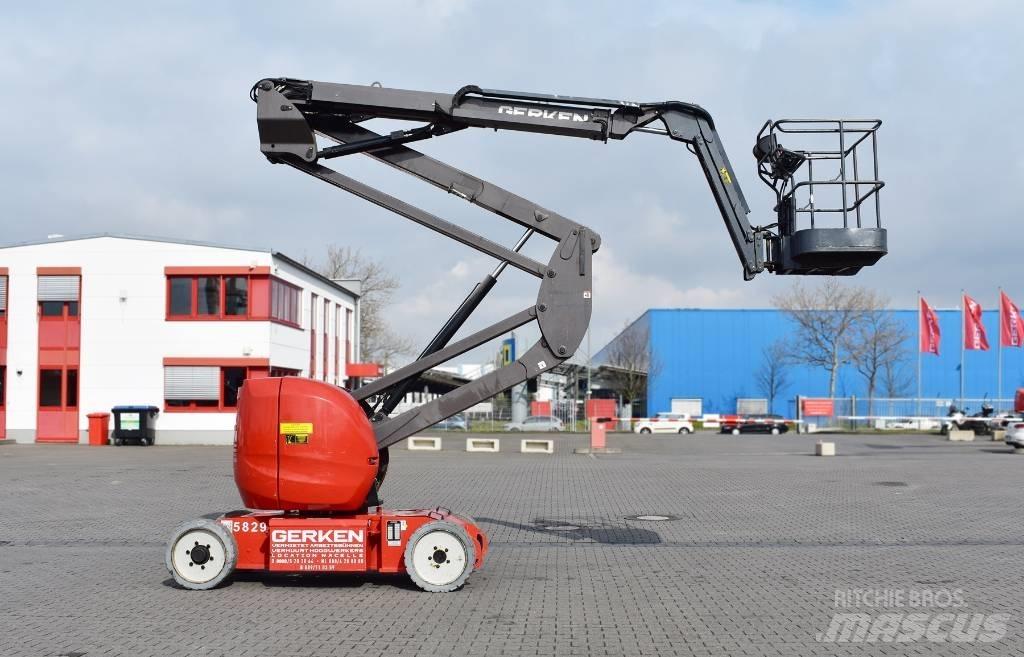

Manufacturer Manitou Type 150 AETJC Built in 2008 Features Working height max 15,15 m Platform height max 13,15 m Lateral reach 7,85 m drive battery total dimensions LxWxH 6,03 x 1,52 x 1,97 m length of Transport position 5,06 m height Transport posision 2,38 m platform dimensions LxW 1,21 x 0,95 m max. basket load 200 kg swivel range +/- 175° overhang 0,14 m movable up to working height 15,15 m max climbing capacity 23% wheel pressure max. 36 kN ground clearance 0,12 m weight 6.700 kg Specifics: rotating work basket basket arm/ vertical angle of rotation +/x 70° White tyres Advantage: total height below 2 meters
