SCM nova si 400
不含税价格
24
收藏
分享
保存搜索打印
信息
类别
建筑机械-其他
品牌/型号
SCM nova si 400
附加选项
Used
设备所在位置
Langley, British Columbia
国家
加拿大
马斯客 ID
D8EA5208
定价
选择币种
详细信息
内部库存编号
90101
其他信息

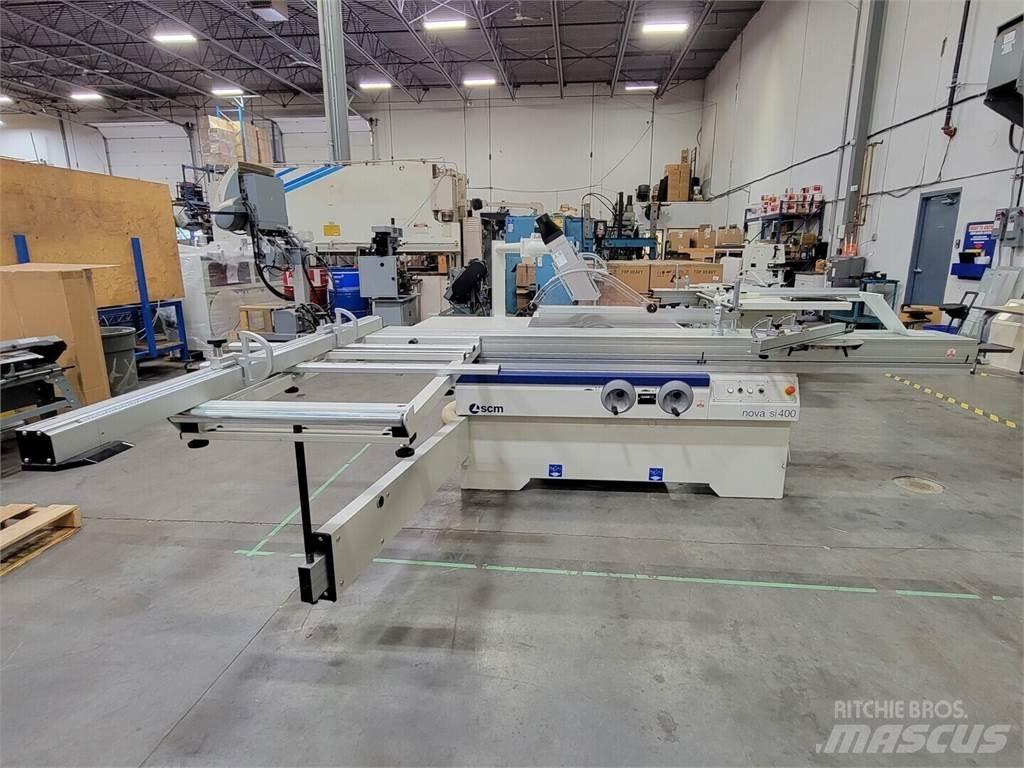

nova si 400 Circular Saw 220V w/ Tilting Blade
Title: nova si 400 Circular Saw 220V w/ Tilting Blade
SKU: 90101
Model: nova si 400
Condition: New
GeneralHorsepower:11hp
Table Size:1040 x 630 mm
Blade Diameter:400 mm
Voltage:220volts
Phase:3-phase
Saw Type:Sliding Saw
CNC:No
Made In: ITALY
Dimensions: 44.50 (H) x 203.00 (W) x 279.00 (L) inches
Max Cutting Height at 90o: 140 mm
Max Cutting Height at 45o: 97 mm
Blade Tilt: 45 degrees
Blades Lifting and Tilt: Manual
Main Blade Rotating Speed: 3700 rpm
Scoring Unit Rotating Speed: 8500 rpm
Scoring Unit Motor Power (S6 -40%): 1.3 kW (1.7 hp)
Squaring Capacity w/ 3200 mm Carriage: 3200 x 3200 mm
Cutting Width on Parallel Fence: 1270 mm
Exhaust Outlet Diameter:
- At the Base: 120 mm
- On Overhead Protection: 80 mm
- On Riving Knife: 60 mm
Standard Equipment and Options
- Anodized aluminum alloy carriage on hardened steel guides, which are fixed on the carriage by means of mechanical bending system
- Sliding carriage length 3200 mm
- Lifting and tilting of saw unit means of handwheels on the machine front side and mechanical readout of saw unit tilt
- Squaring frame the fast fence positioning of angular cuttings
- Outfeed table extensions
- Manual rip fence with position reading on metric rule
- Sliding on steel bar, 40 mm diameter with micrometric adjustment
Safety/Protections
- Emergency pushbutton located on the front machine side
- Emergency pushbuttons located on parallel fence side (CE version)
- Overload protection
- Blade protection on riving knife (versions with electrical protections) exhaust outlet 60 mm
- Overhead saw guard (CE and USA-Canada versions) incorporated dust extraction, 80 mm outlet diameter
- Automatic brake on main sawblade (CE and USA/Canada version)
- Padlockable main switch
- Auxiliary low voltage circuit (110 voltage)
- Certificate of conformity with "C.E. Standards" (CE version)
- "CSA" rated electrical components, including cables (USA/Canada version)
Additional Features

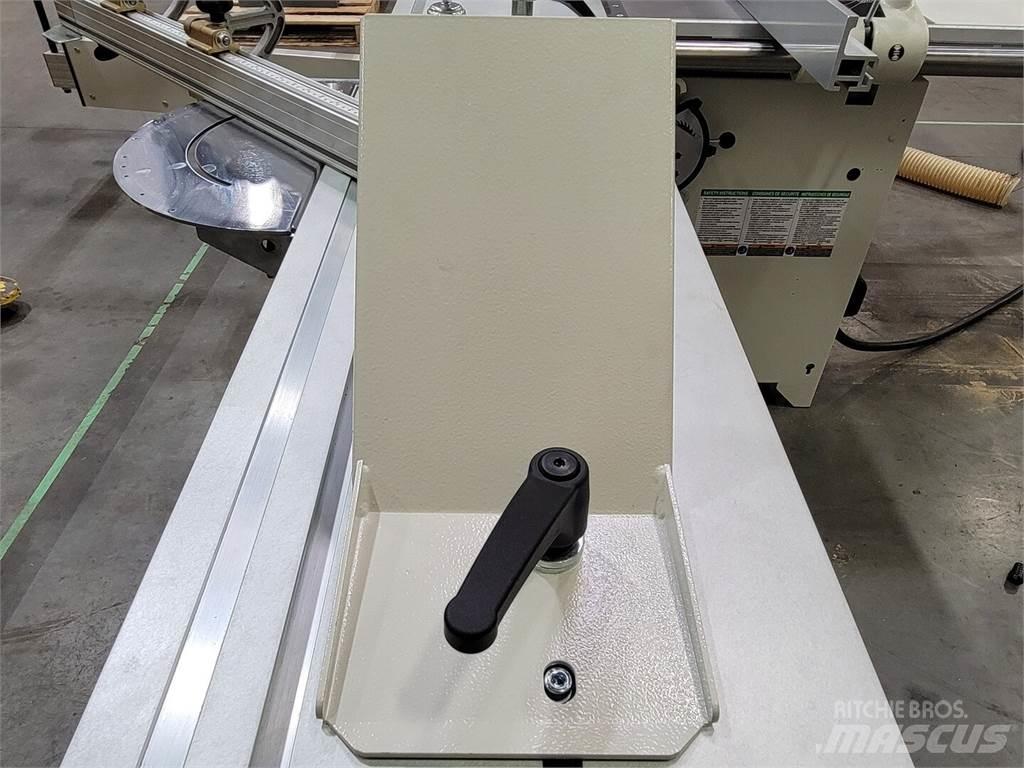

- Eccentric Clamp
- Seaworthy Packing
[PDF Brochure](... Footprints](...显示更多
