Haas VF-7/50
不含税价格
打印
信息
类别
建筑机械-其他
品牌/型号
Haas VF-7/50
生产年份
2006
附加选项
Used
设备所在位置
Langley, British Columbia
国家
加拿大
马斯客 ID
8D35D632
定价
选择币种
详细信息
内部库存编号
138726
其他信息

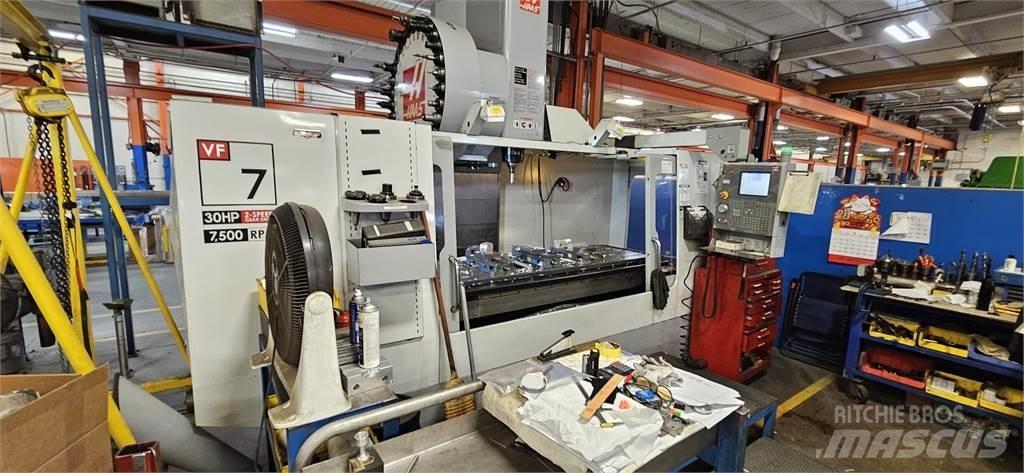

30 hp Vertical Machine Centre VF-7/50
Title: 30 hp Vertical Machine Centre VF-7/50
SKU: 138726
Model: VF-7/50
Year: 2006
Condition: Used
S/N: 48566
GeneralSpindle Taper:CAT 50
Cross Travel (Table):84 x 32 x 30"
Table Size:84 x 28"
Speed:7500 rpm
CNC:Yes

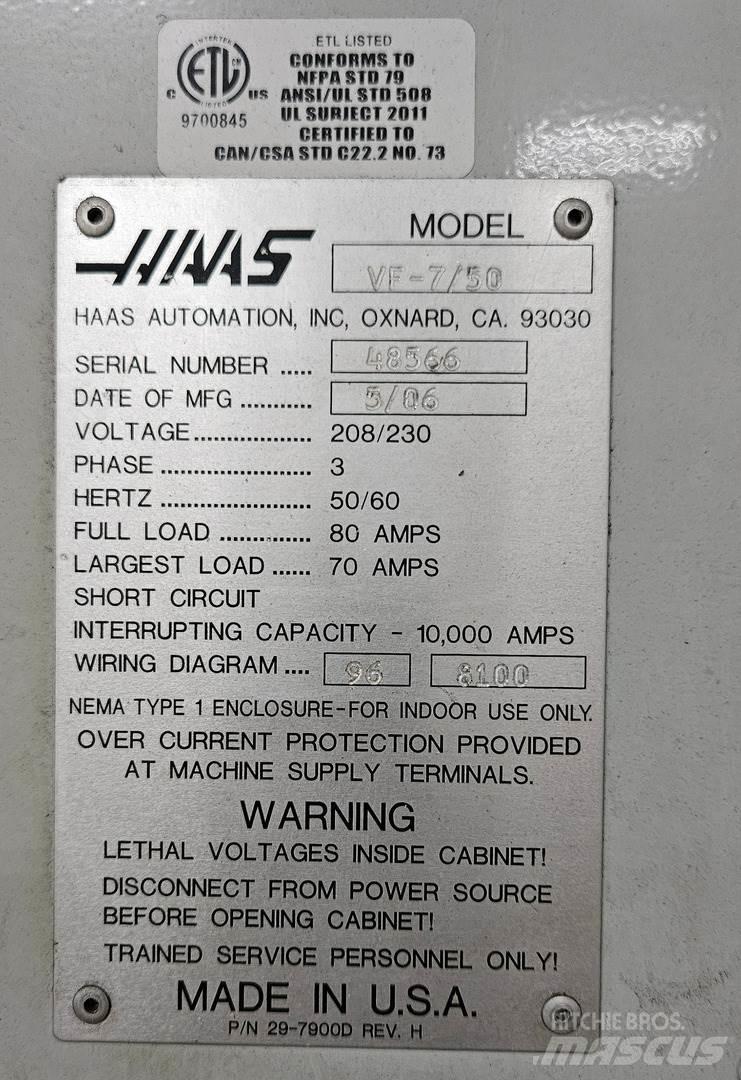

ElectricalVoltage:208/230volts
Phase:3-phase
Amps:80amps
Vertical Machining Center with Haas CNC Control
Table Size: 84" x 28"
Maximum Weight on Table: 4000 lbs
Travels:
- X-Axis: Travel 84"
- Y-Axis: Travel 32"
- Z-Axis: Travel 30"
Spindle Speed: 7,500 RPM
Spindle Nose to Table: 4" - 34"
Number of Tool Positions: 30+1 Station Side Mounted ATC
Rapid traverse rates (x, y, z): 400 ipm / 600 ipm / 600 ipm
Lenmark Industries Ltd
27576 51a Ave V4W 4A9 Langley British Columbia 加拿大
