美卓 RCS 5

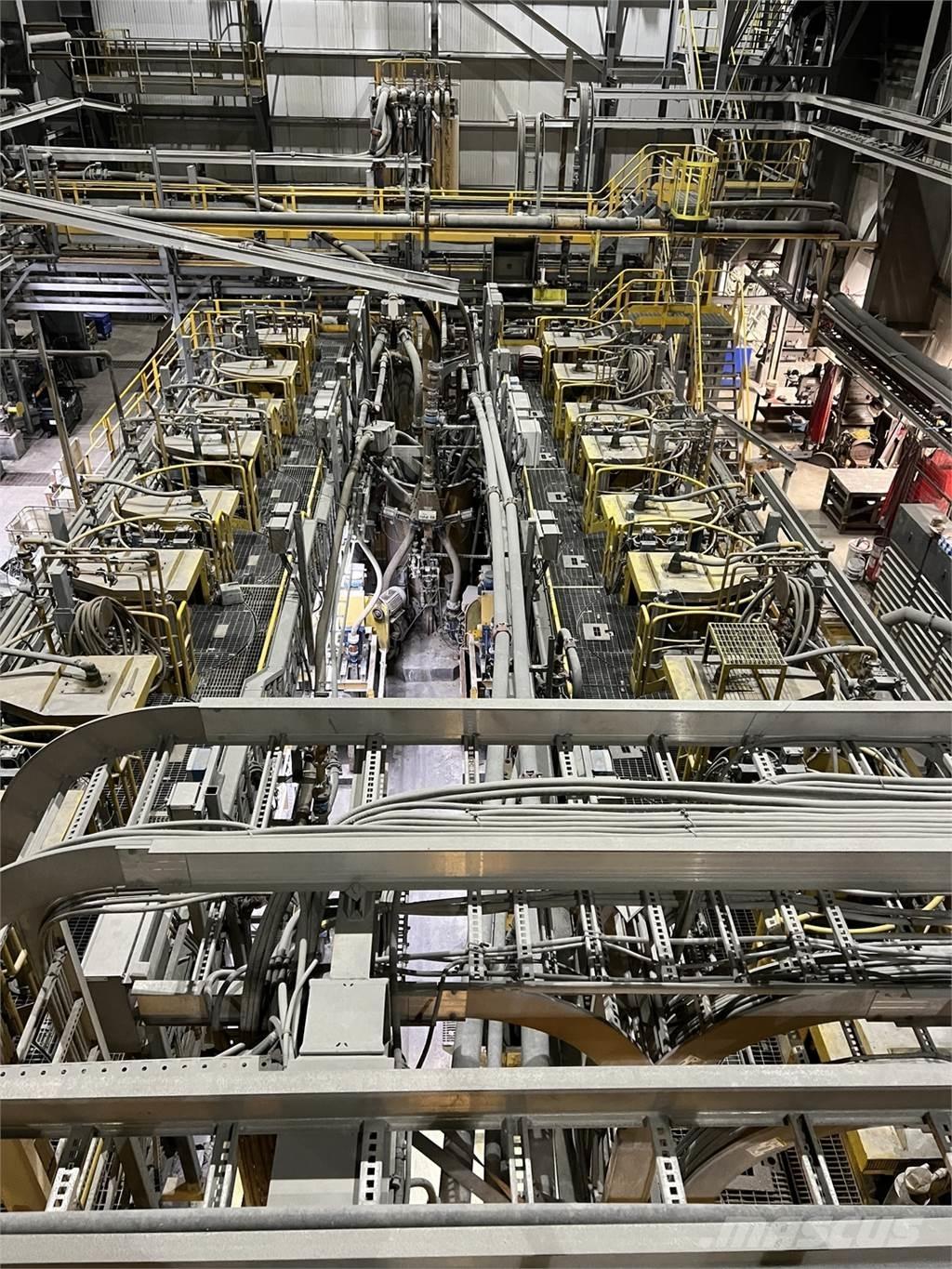

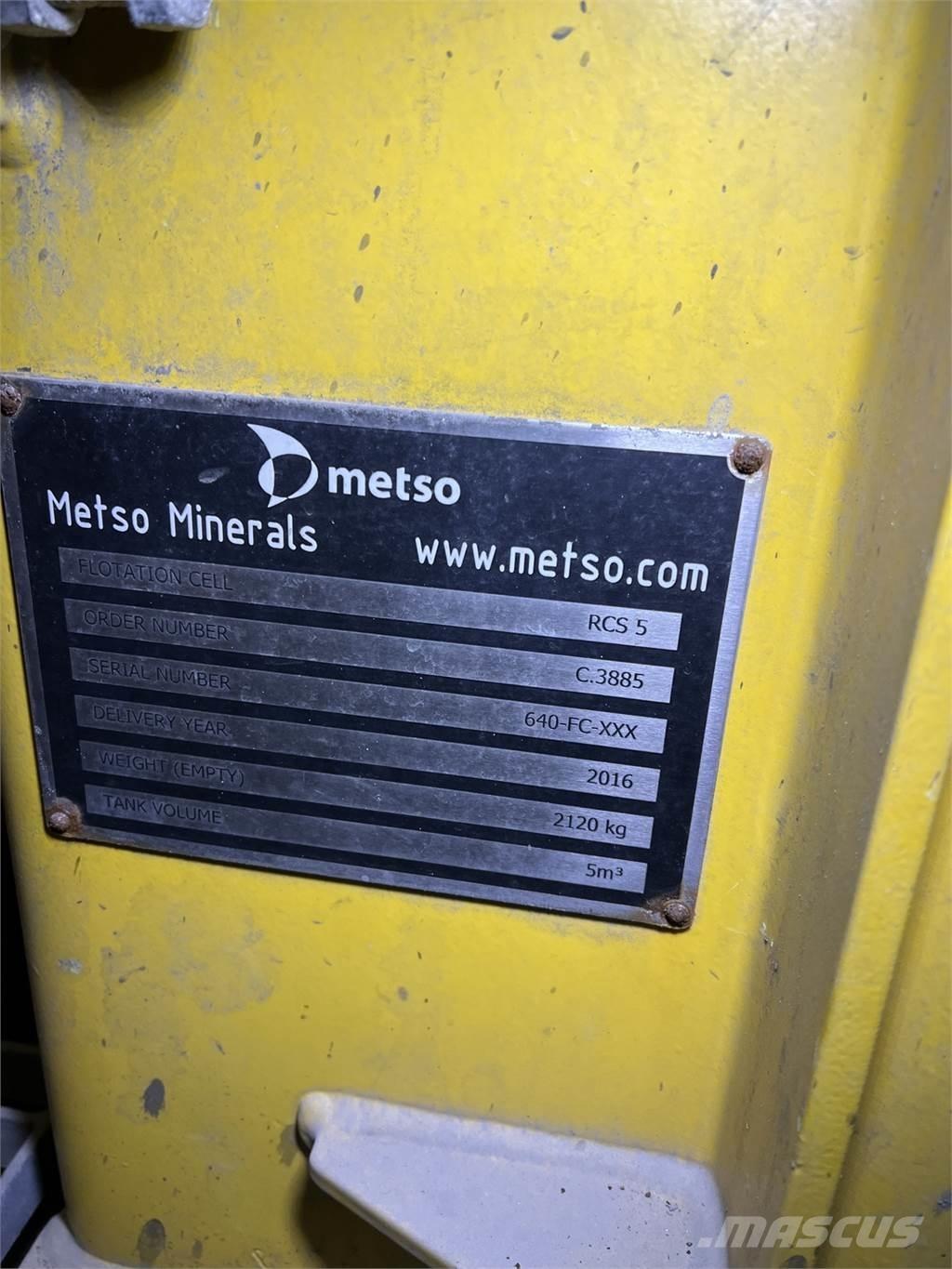

9-Cell Cleaner/Rougher Flotation Circuit System RCS 5 Title: 9-Cell Cleaner/Rougher Flotation Circuit System RCS 5 SKU: 137930 Model: RCS 5 Year: 2016 Condition: Used S/N: 640-FC-XXX Number of lines: 1 Number of cells/line: 9 Bank arrangement: FB-1-FB-1-FB-2-2-3-DB Cell type: RCS 5 Cell volume: 5 m3 Cells, feed and discharge box lining: Rubber lined in high wear areas with Natural rubber. Impeller and diffuser material: Moulded polyurethane on carbon steel skeleton Air requirement/bank: 27 Nm3 free air delivered at 19 kPag at shaft Motors: 15 kW, 6-pole Supply voltage : 575/600 V, 3Ph, 60 Hz. Tank Volume: 5000L
