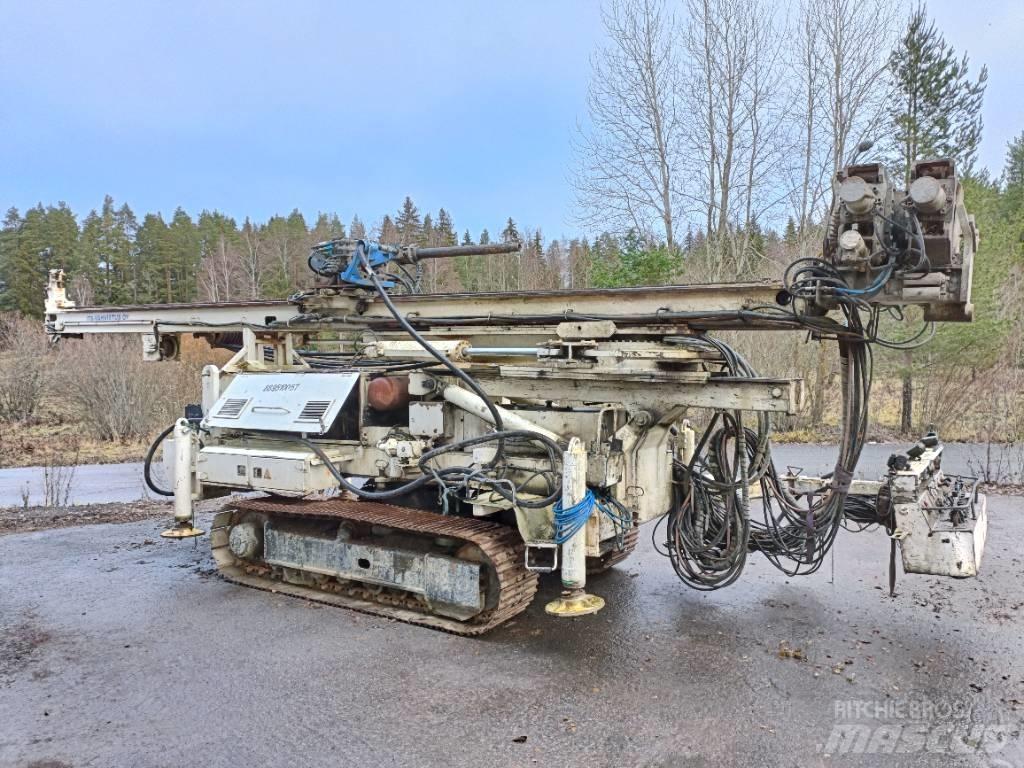

Drilling rig Casagrande C8
Manufacturer: Casagrande S.p.A
Serial number: C8ZD0267
Year of manufacture: 2002

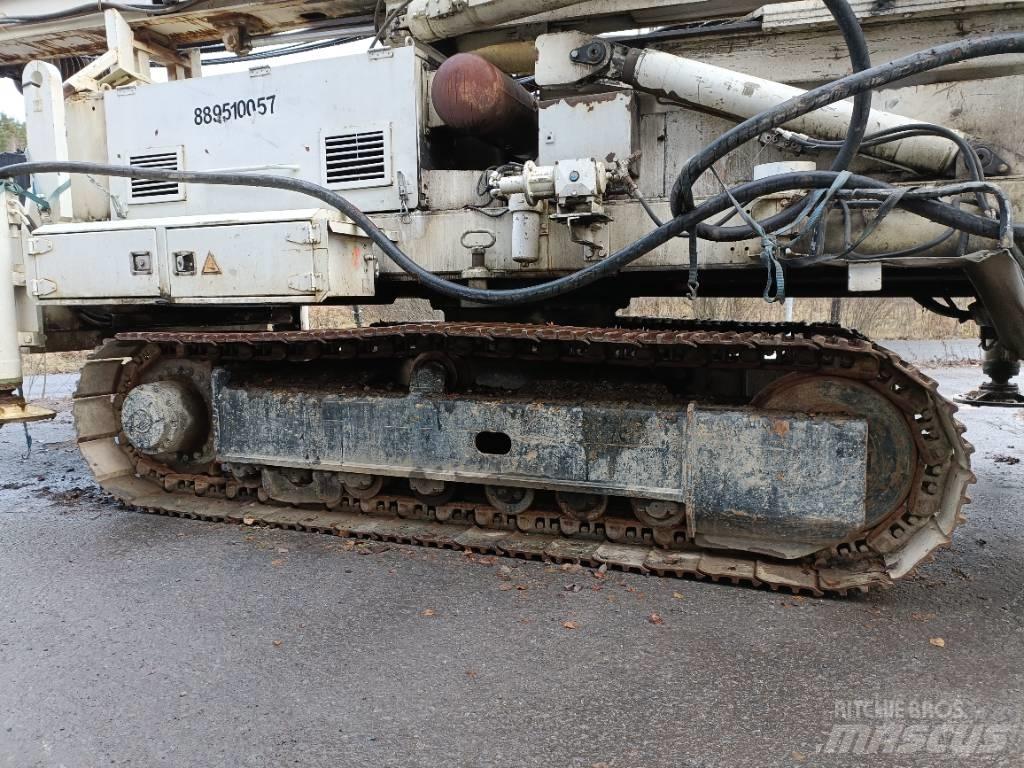

Crawler mounted.
CE certified
Dimensions and weight in working conditions:
• Length: 11 140 mm
• Height: 3 260 mm
• Width: 2 320 mm
• Total mass: 21 600 kg

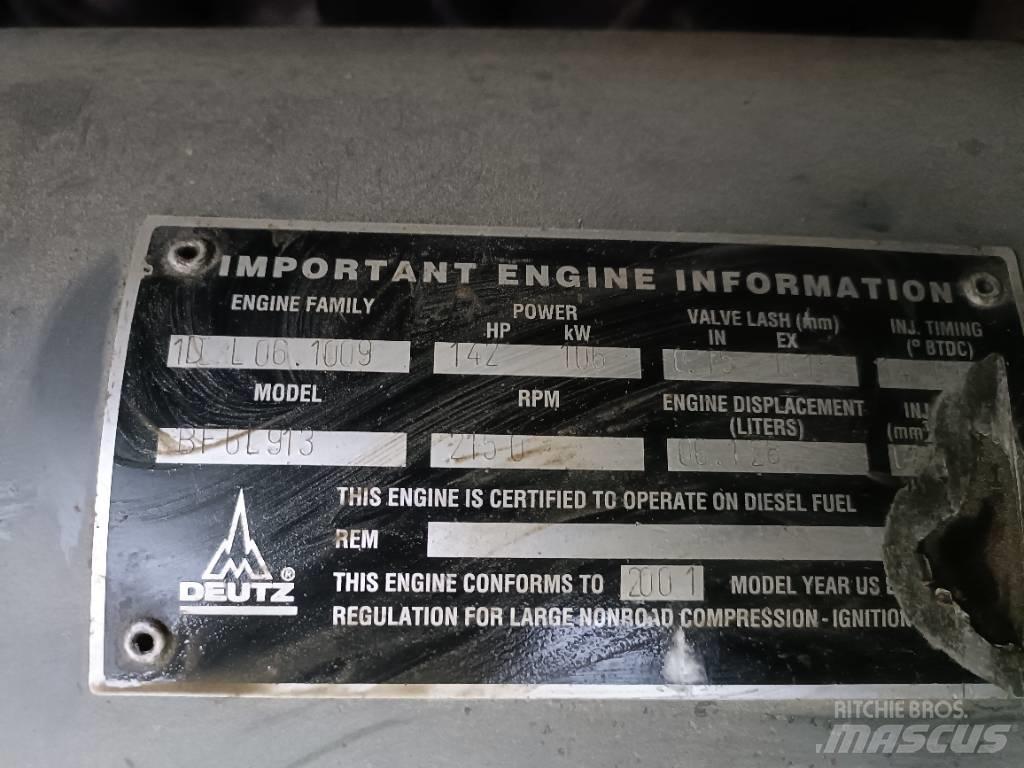

Diesel engine: Deutz BF6L913 106 kW
Feed travel fitted for 8 mt long drill rods.
Extraction force (220 bar): 8 000 kg
Feed Force (220 bar): 4 000 kg
Rotary head: The machine is sold without a rotary head or hydraulic hammer
Double clamp
Clear water pump/foam pump: 40 lT/1', pressure 50 bar
Hydraulic winch with max pull line: 2000 kg @ 1st layer
The hour meter reading is 4998 hour but the actual number of hours is unknown
The drill rig is in working condition
Immediately available显示更多
