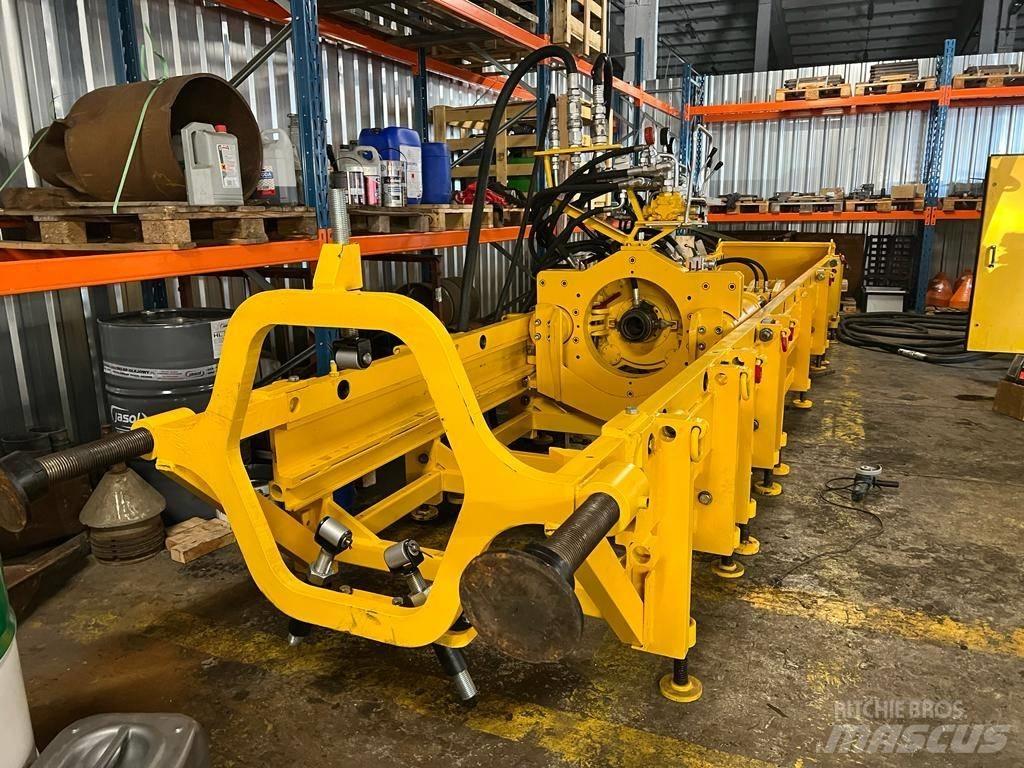

Used PERFORATOR GmbH auger drilling rig, model PBA-95, for sale
Specification:
1. PBA-95 drilling rig (well version, for work in a DN2000mm round well) and an additional frame for work in a rectangular trench:
1.1. Track for working with 1m pipe modules
1.2. Track for working with 2m pipe modules
1.3. Track for working with 3m pipe modules
1.4. Track for working with 6m pipe modules
2. Hydraulic unit 300 bar, DEUTZ engine,
3. Remote control cable for the hydraulic unit. 25m
4. Supply hoses 1 set.
5. Mud drill rods, 114mm x 1m. 50 pcs
6. Drill pilot 1 set.
7. Continuous feed mud pump, 1 pc. with power cables
8. PERFOCAM optical navigation with LCD-TFT monitor + Perfolux, 1 set.
9. Zerdź spindle connector, 1 pc
10. Auger spindle connector, 1 pc
11. Hand wrench, 2 pcs
12. Hydraulic pole wrench - Clamp, 1 pc
13. Additional struts for a rectangular excavation
Parameters:
-Pushing force: 95 tons
-Torque: 16000 Nm
-Drilling diameter: 219-560mm (610mm)
-Maximum drilling length: 100m (pipe 610 to 50m)
-Minimum dimensions of the drilling rig: 1950 x 1320
-Weight of the drilling rig on the basic track: 1900 kg
Price to be determined. I will sell at a reasonable price.
The equipment has been regularly serviced, renovated and fully functional.
The goods are available in the Zabrze-Polska warehouse. I will provide more photos for those interested.
If you are interested, please contact me directly.显示更多
