FFE MINERALS Vecor
不含税价格
14
收藏
分享
保存搜索打印
信息
类别
矿石筛
品牌/型号
FFE MINERALS Vecor
生产年份
2004
附加选项
Used
设备所在位置
Langley, British Columbia
国家
加拿大
马斯客 ID
E9014998
定价
选择币种
详细信息
内部库存编号
86953
其他信息

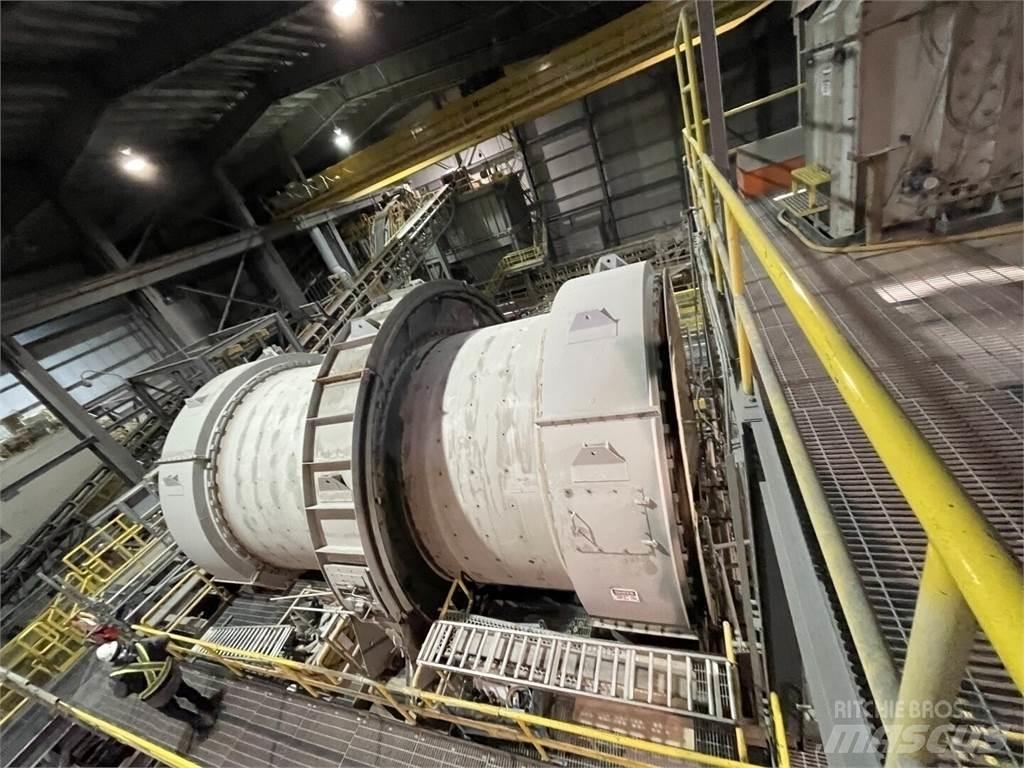

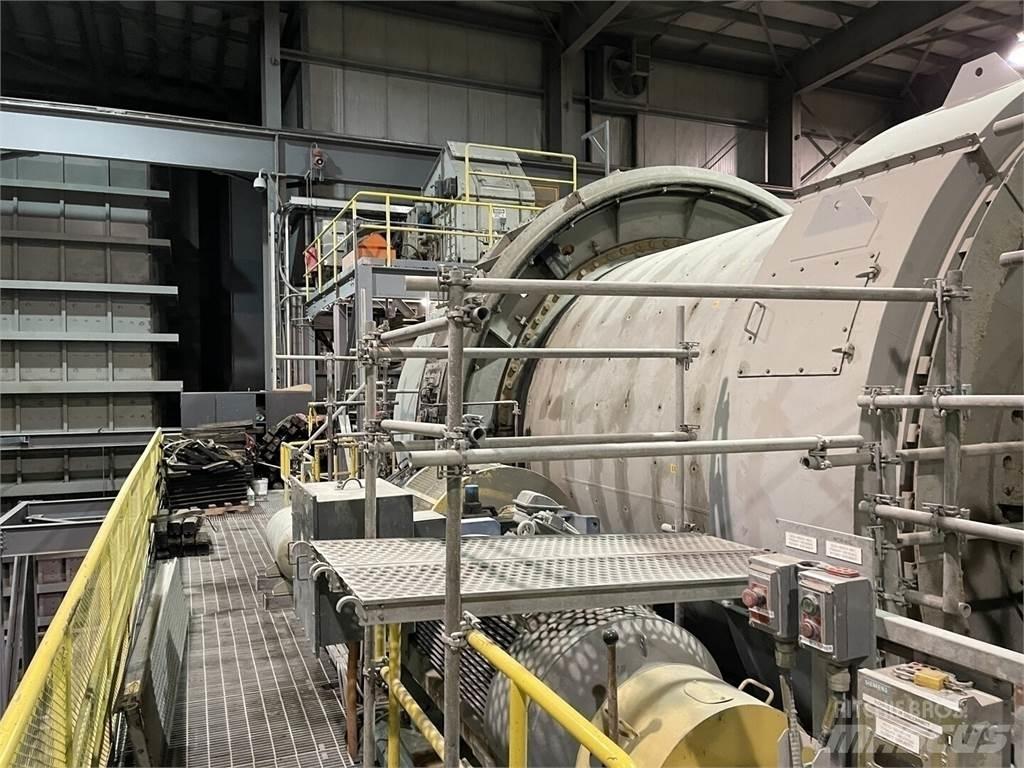

Rotary Scrubber 4.0m x 7.4m w/ 600 kW Motor
Title: Rotary Scrubber 4.0m x 7.4m w/ 600 kW Motor
SKU: 86953
Model: Vecor
Year: 2004
Condition: Used
Made In: UNITED STATES
** Included equipment description
Overflow discharge scrubber
- complete with shell and end plates, single helical fabricated steel gear and forged steel pinion, automatic grease spray gear and pinion lubrication system, gear guard, slipper pad type main bearings with sole plates, hydrodynamic main bearing lubrication, feed spout, discharge spout, and guards.
- Mill drive motor, motor starters, reducer, pneumatic clutch, mill liners
Lots of rubber scrubber liners
- Consists of 63 mm plate with 76 mm lift, and filler ring
600 kW, 1200 RPM squirrel cage induction motor
Eaton Airflex 38VC1200 or equal single wide pneumatic clutch
Falk 465A2 drive
Shell & Integral Parts Specifications
- Capacity 450 tones per hour
- Shell Material: 25mm mild steel plate conforming to BS4360 GR 43A - Ultrasonic tested to BS 5996 1980 GR B1.
- Plate edges prepared for automatic submerged arc welding process.
- Bearing Runners Material: 50mm mild steel plate conforming to BS 4360 GR 55EE - Ultrasonic tested to BS 5996 1980 GRB4.
- GR 50EE material is vacuum de-gassed, fully killed and aluminum-treated to ensure fine grain. The steel is ladle treated to reduce sulfur content below 0.010%.
- Longitudinal Joints: Staggered to avoid crossing at circumferential seams, weld seams internal to shell is ground flush.
- End Plates: 100mm welded adjacent to shell, ultrasonic tested to BS 5996 1980 GR B4E.
- Finish: Inside shell lined with 450 micron layer of dual epoxy paint. Outside feed/discharge end diaphragms lined with 6mm rubber.
- Other Features: No manhole opening due to large inlet/outlet openings providing easy access to inside shell.

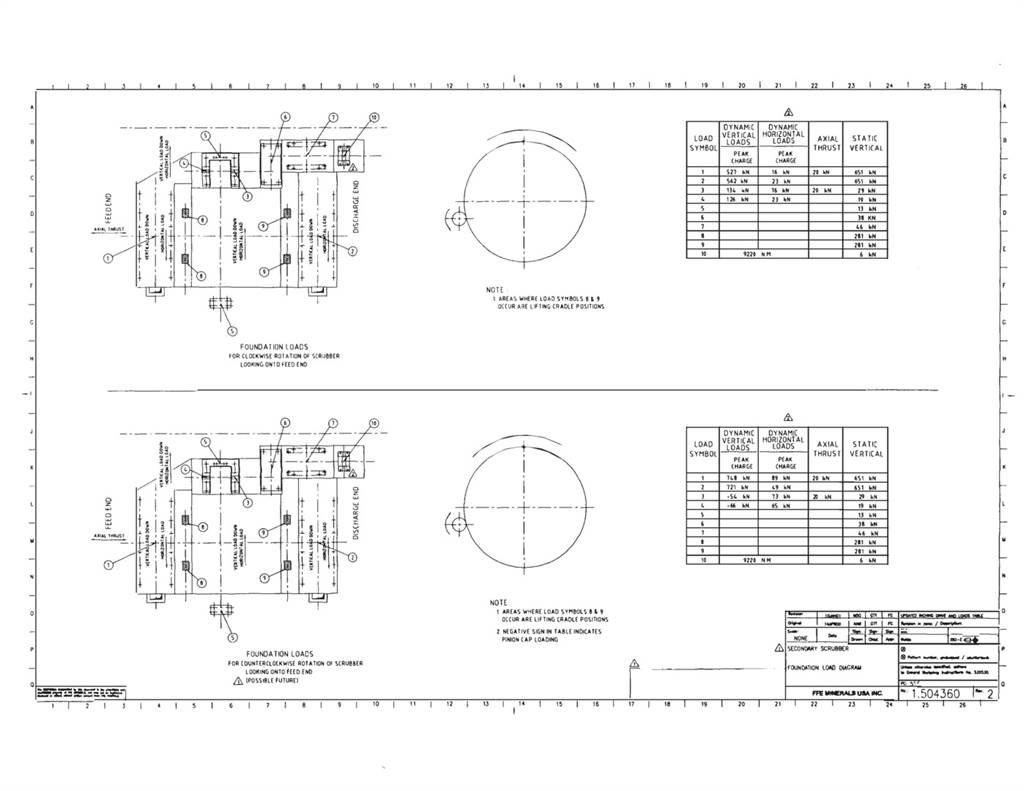

Full specifications of all parts and assembly drawings available. Contact for more details.显示更多
Lenmark Industries Ltd
27576 51a Ave V4W 4A9 Langley British Columbia 加拿大
