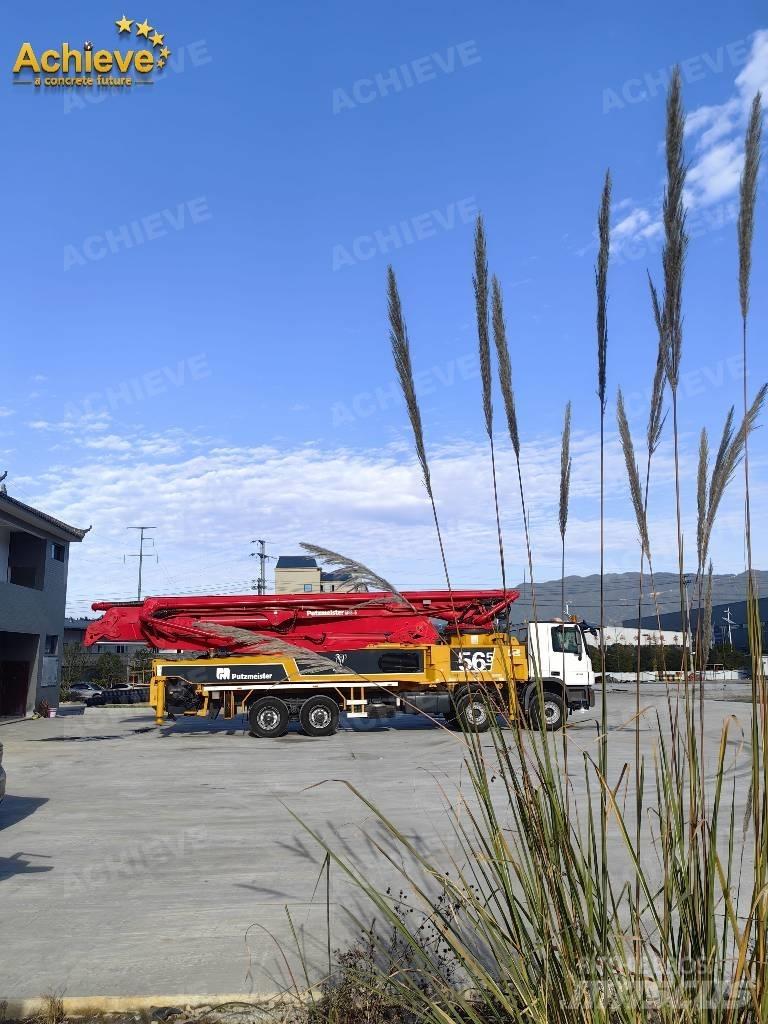

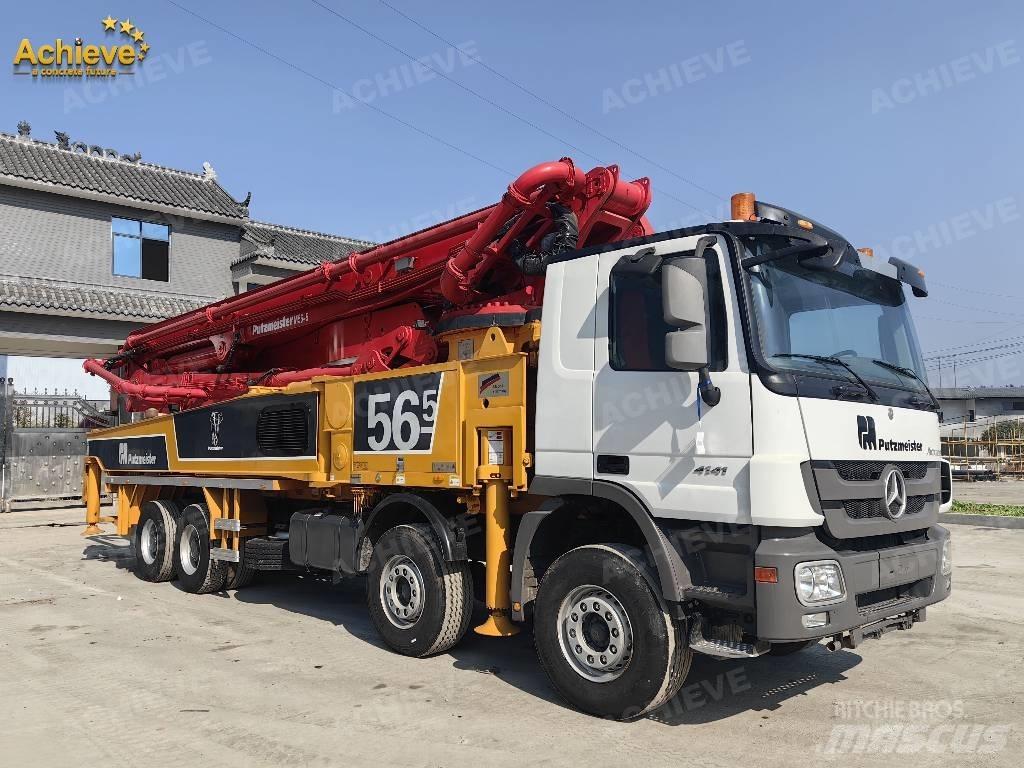

普茨迈斯特 M56-5

Technical Details General Information Arms 5 Folding Type RZ-Folding Vertical Reach 55.1 m Horizontal Reach gross 49.9 m Horizontal Reach net 45.6 m Reach Depth 40.3 m Unfolding Height 15.6 m Slewing Range 365 degree End Hose - Length 3 m Delivery Line (DN, Pressure) DN125/5.5 / 85 mm/bar Support width Standard (front-rear) 9.0 / 12.4 m Support width OSS (front-rear) 5.9 / 8.1 m Support width iSC (front/rear) 2.6-9 / 3-12.4 m Length x Width x Height 14.1 x 2.5 x 4 mm Configuration Concrete Pump .19 iLS Concrete Pump .17 iLS Concrete Pump .16 H LS Concrete Pump .16 H Delivery Cylinder Diameter - Stroke Length 250/2100 mm Output (piston side) 190 m³/hr Delivery Pressure (piston side) 85 bar Strokes (piston side) 30
