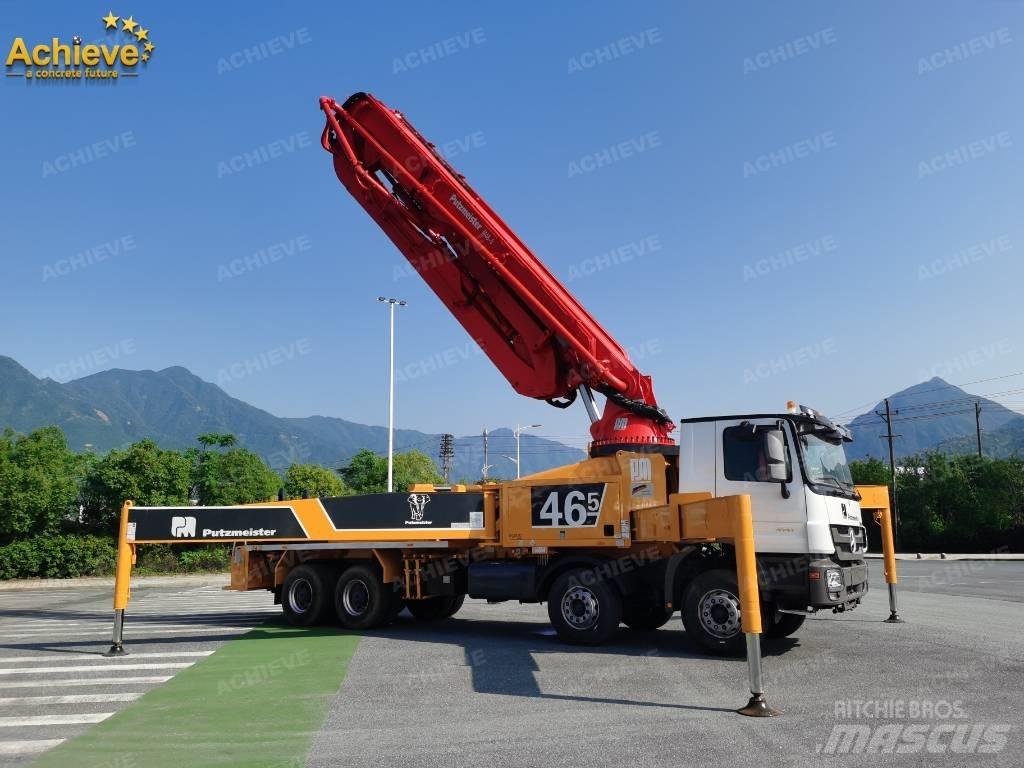

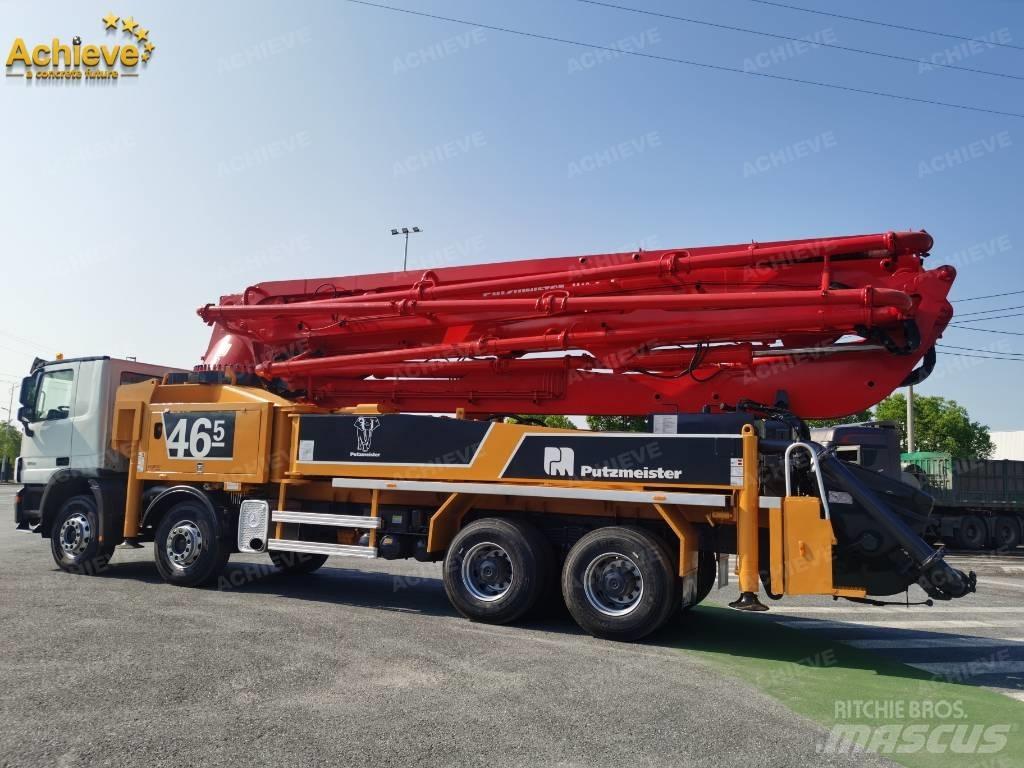

普茨迈斯特 M46-5

Folding type 5-arm Roll-Z fold system (RZ) Vertical reach 45.5 m Horiz. reach 40.5 m (gross) Depth of reach 32.8 m Unfolding height 11.1 m End hose length 4 m Delivery lines DN 125 Slewing circle 365°

■ A gross weight of less than 32 t incl. sufficient reserves for payload and functional fluids ■ Smooth 5-arm placing boom thanks to intelligent laying of the delivery line and the harmonious continuity of the steel structure ■ Efficient working thanks to consistent sophisticated ergonomics and Ergonic® 2.0, the innovative control hardware and software ■ Maximum safety thanks to comprehensive consideration of applicable standards and directives ■ Service-friendly thanks to optimized accessibility and consistent screw concept ■ Minimal service costs thanks to maintenance-free components, fewer different types of components (e.g. only four standard elbow types) and smaller quantities of functional fluids ■ The I frame follows the distortions of the chassis: Results in less distortion and longer service life ■ Flexible, space-saving TRDI support system, in particular, significantly reduced extent of supports when using OSS* and ESC**
