普茨迈斯特 M 42

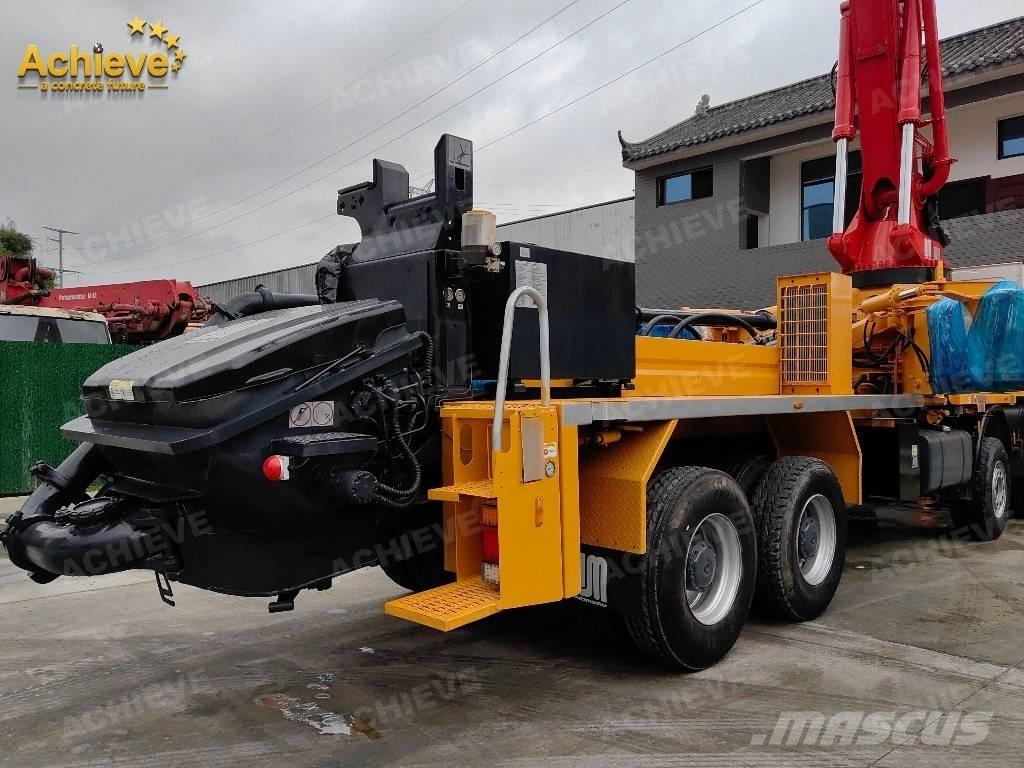

【ACHIEVE】TOP CONDITION!!! Actros 4141 concrete pumpM42-4R 170 m³/hr M42-4 The Next Generation of the M42-4 Truck-Mounted Concrete Pump The Putzmeister M42-5 truck-mounted concrete pump has improved maneuverability and weight indices for 4 axle chassis. In Europe the M42-5 is equipped with iSC full flexible support and Ergonic 3 control. For countries outside of Europe it is equipped with the OSS support system, which allows you to work in a limited workspace. The concrete pump length is less than 12 meters, and it weighs less than 32 tons. Link to Reach Forecast App for M42-5 with Ergonic3. EU Version Key Features A gross weight of less than 32 t includes sufficient reserves for payload and operating materials Smooth 5-arm placing boom, thanks to intelligent laying of the delivery line and the balanced development of the steel structure Efficient work through consistently clever ergonomic design Even better safety through closer consideration for current standards and guidelines Service-friendly as a result of its optimised accessibility and consistent bolted concept Lower service costs thanks to maintenance-free components, fewer special components (only 3 standard delivery line bends) and lower volumes of functional fluids (oil volume reduced by 30 %) Technical Details General Information Number of sections 5 Boom Style RZ-Folding Vertical Reach 41.6 m Horizontal Reach 37.3 m Reach from Front of Truck 34.5 m Reach Depth 31 m Unfolding Height 8.6 m Rotation 365 degree End Hose Length max. 4 m Delivery Line (DN + Pressure) DN125/5.5 / 85 mm/bar Support width Standard (front-rear) 7.5 / 8.3 m Support width OSS (front-rear) 5.0 / 6.1 m Support width iSC (front/rear) 2.6-7.5 Length x Width x Height 11.35 x 2.5 x 4 mm Total Weight (approx.) under 32000 kg Configuration Concrete Pump Cell .17 iLS Concrete Pump Cell .16 H LS Concrete Pump Cell .16 H Material Cylinder Diameter-Stroke Length 250/2100 mm Output (piston side) 170 m³/hr Delivery Pressure (piston side) 85 bar
