Stateline SP175

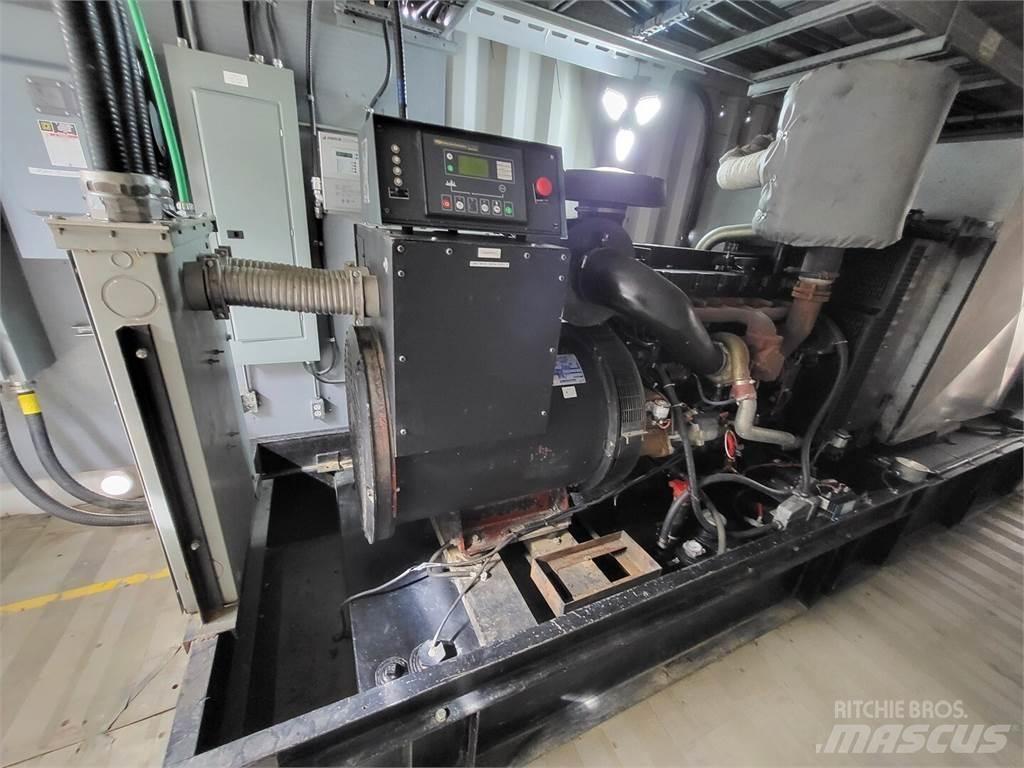

175kW Two unit Genset Container w/ Switch Gear Title: 175kW Two unit Genset Container w/ Switch Gear SKU: 126385 Model: SP175 Year: 2007 Condition: Used GeneralHorsepower:258hp Fuel Type:Diesel Hours:5789 Mount:Skid Mounted Rating:Standby ElectricalkVA:219kVA Voltage:120/208volts Phase:3-phase Dimensions: 102.00 (H) x 96.00 (W) x 480.00 (L) inches Engine Specs Model: Perkins Diesel Engine 1106D-E66TAG4 - Direct injection, Vertical In-line 4 cycle, 6 Cylinder - Turbocharged & Air Cooled, Dry type Air Cleaner - Max. Power: 192 kWm (258 bhp) ... 1800 RPM - Cubic Capacity: 402.8 in3 / 6.6 L - Bore & Stroke: 4.13" x 5.00" (105mm x 127mm) - Compression Ratio: 16.2:1 - Governor type: Electronic - Frequency Regulation: Isochronous, Steady-State +/- 0.5% - Oil capacity Total system: 17.44 Qts. (16.5 liters) - Coolant capacity w/ Radiator: 5.5 Gal. (21.0 liters) Installation Data Air requirement: Air Flow for Rad CFM (m3/min.): N/A (N/A) Exhaust System: Recommended Outlet size: 4" (101.6mm) Filtration: Oil Filter: Spin-on type Air Filter: Dry element type Fuel Consumption: Fuel Supply Line inlet: 1/2" NPT Pressure: 7-11 in. H2O Fuel Type: BS2869: Part 2 1998 Class A2 or ASTM D975 D2 General: 12V Starter, 100 Amps Alternator DC output Electric System Recommended Battery: 12V, 1190 CCA Recommended Oil: SAE 5W-30 for 0°F and above
