卡特 SR4B-GD
不含税价格
13
收藏
分享
保存搜索打印
信息
类别
柴油发电机
品牌/型号
卡特 SR4B-GD
生产年份
2012
附加选项
Used
设备所在位置
Langley, British Columbia
国家
加拿大
马斯客 ID
5408F2EF
定价
选择币种
详细信息
内部库存编号
138143
其他信息
1843 kVA 1475 kW Natural Gas Generator SR4B-GD w/ Engine 3516C
Title: 1843 kVA 1475 kW Natural Gas Generator SR4B-GD w/ Engine 3516C
SKU: 138143
Model: SR4B-GD
Year: 2012
Condition: Used
S/N: G5Z01287
GeneralHorsepower:1978hp
Fuel Type:Natural Gas
Hours:27582.4
ElectricalkVA:1843kVA
Voltage:400volts
Phase:3-phase
Made In: UNITED STATES
Dimensions: 122.00 (H) x 118.00 (W) x 480.00 (L) inches
Overhaul done at 26210 hours
Ran for 1300 hours after overhaul
Currently set for 50hz but can bump frequency up to 60hz
Engine:
- Caterpillar 3516C
- Advertised power: 1622 kW // 2175 hp
- Full load speed: 1500 RPM
- Comp. ratio: 11.3:1
Overhaul Job Description:
- Engine Major Overhaul
- The cylinder block of generator set NO.5 is installed
- Replaced main and rod bearings, piston rings, thermostat, and other wear parts
- Replaced all seals on the unit; -Replaced 16 pistons and 4 cylinder liners
- Repaired the cylinder head, parts not replaced; -Replaced two water pumps with REMAN parts
- Repaired the oil pump
- Cleaned and pressured test the oil cooler
- Visually inspected the turbocharger. Left turbocharge used again, right turbocharge to be repaired
- The coupling has been damaged and continues to be used without replacement
Generator Maintenance:
- It used the generator of the NO 5 genset set after maintenance
- Replaced front and rear bearings and grease seals
- Replaced front and rear bearing outer rings
- Performed laser cladding on the rear ends of the main shaft
- Performed VPI (Vacuum Pressure Impregnation) insulation treatment and drying
- Conducted rotor dynamic balance test
- Conducted overall performance testing
Shaft Alignment Check:
- Engine and Generator Shaft Alignment
Radiator Check:
- The water tank of genset 5 was installed into genset 6
- Radiator Disassembly, Reassembly, and Cleaning
Generator Set D&A:

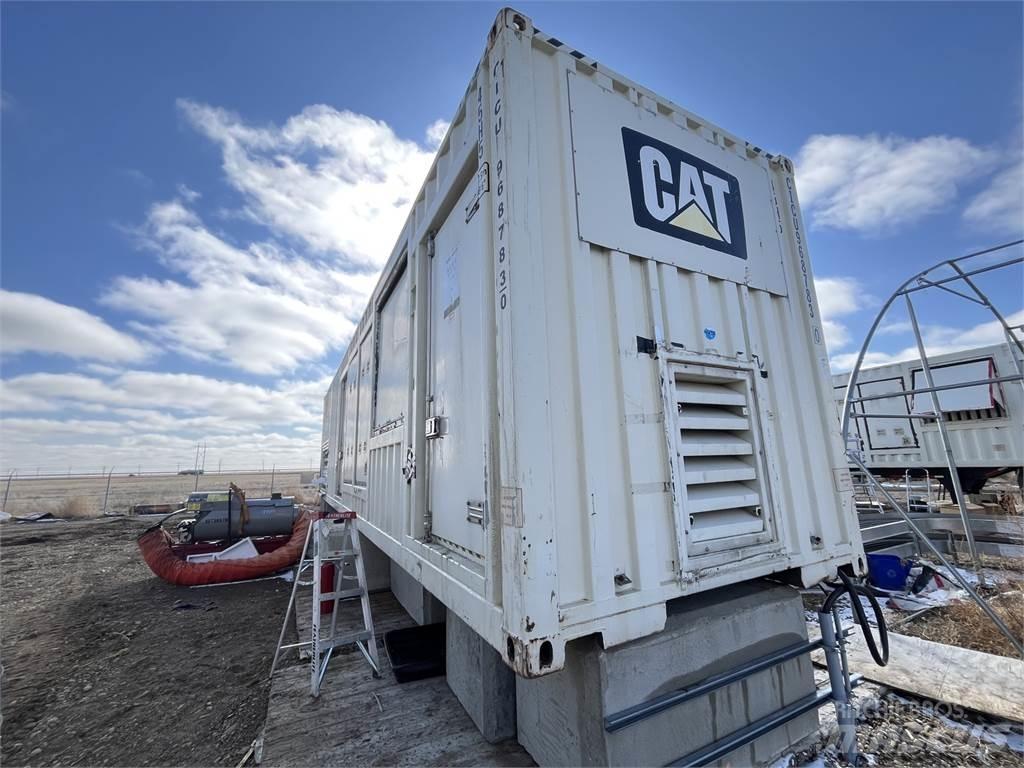

- Continued to use the container of generator Set 6
- Generator Set Entry and Exit from the Container
Overall Performance Testing:
- Tested according to Caterpillar test standard 349-6498 (see attachment for details), with a maximum load reaching 60%. As all cylinder heads installed are manually refurbished on site, please note that the long-term load must not exceed 60%显示更多
Lenmark Industries Ltd
27576 51a Ave V4W 4A9 Langley British Columbia 加拿大
