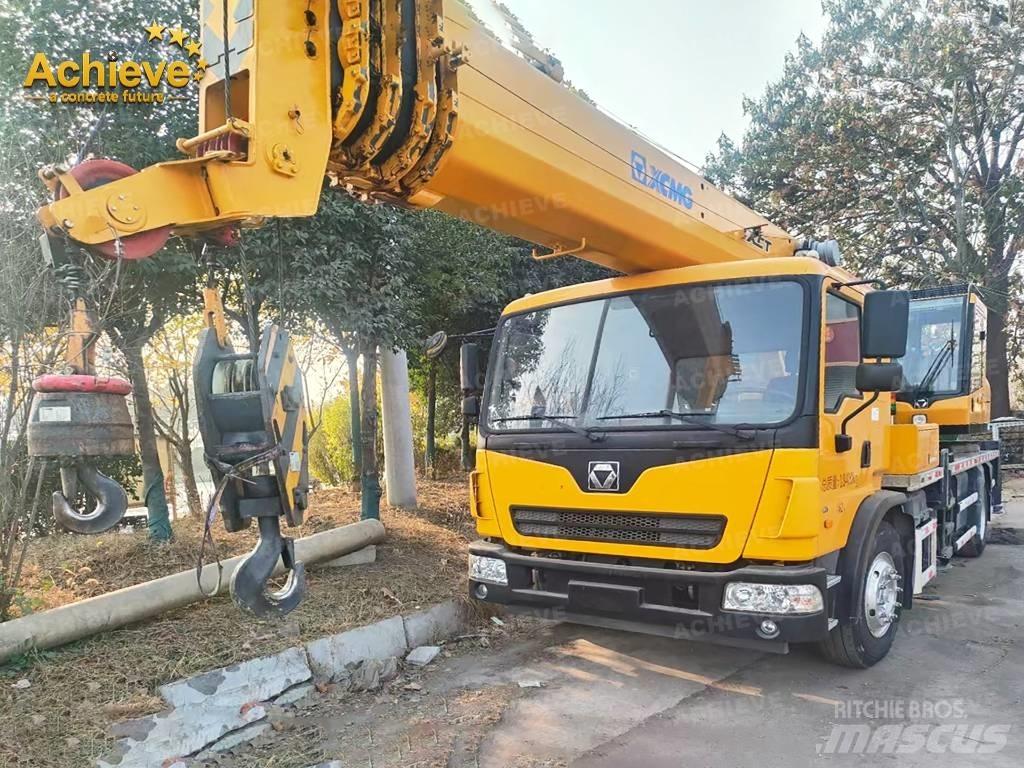

徐工 XCT12L5

Category Item Unit XCT12L4 Dimension Overall length mm 10900 Overall width mm 2500 Overall height mm 3550 Weight Total weight in travel kg 16000 Travel Max. travel speed km/h 90 Min. turning diameter m 18 Min. ground clearance mm 250 Approach angle ° 21 Departure angle ° 13 Max. grade ability % 41 Fuel consumption for 100km L 25 Main performance Max. rated total lifting capacity t 12 Min. rated working radius m 3 Turning radius at turntable tail m 2.57 Max. lifting torque kN.m 482.5 Base boom m 9.5 Max.main boom m 30.9 Max.main boom+jib m 38.1 Turning radius at turntable tail Counterweight mm 2570 Auxiliary winch mm 2910 Max. load moment Base boom t.m 48.25 Fully-extended boom t.m 27.6 Outrigger span(fully-extended) Longitudinal m 4.57 Hoist height Lateral m 5.5 Base boom m 9.5 Fully-extended boom m 30.9 Boom length Fully-extended boom + Jib m 38.1 Base boom m 9.45 Fully-extended boom m 30.5 Fully-extended boom + Jib m 30.5+7
