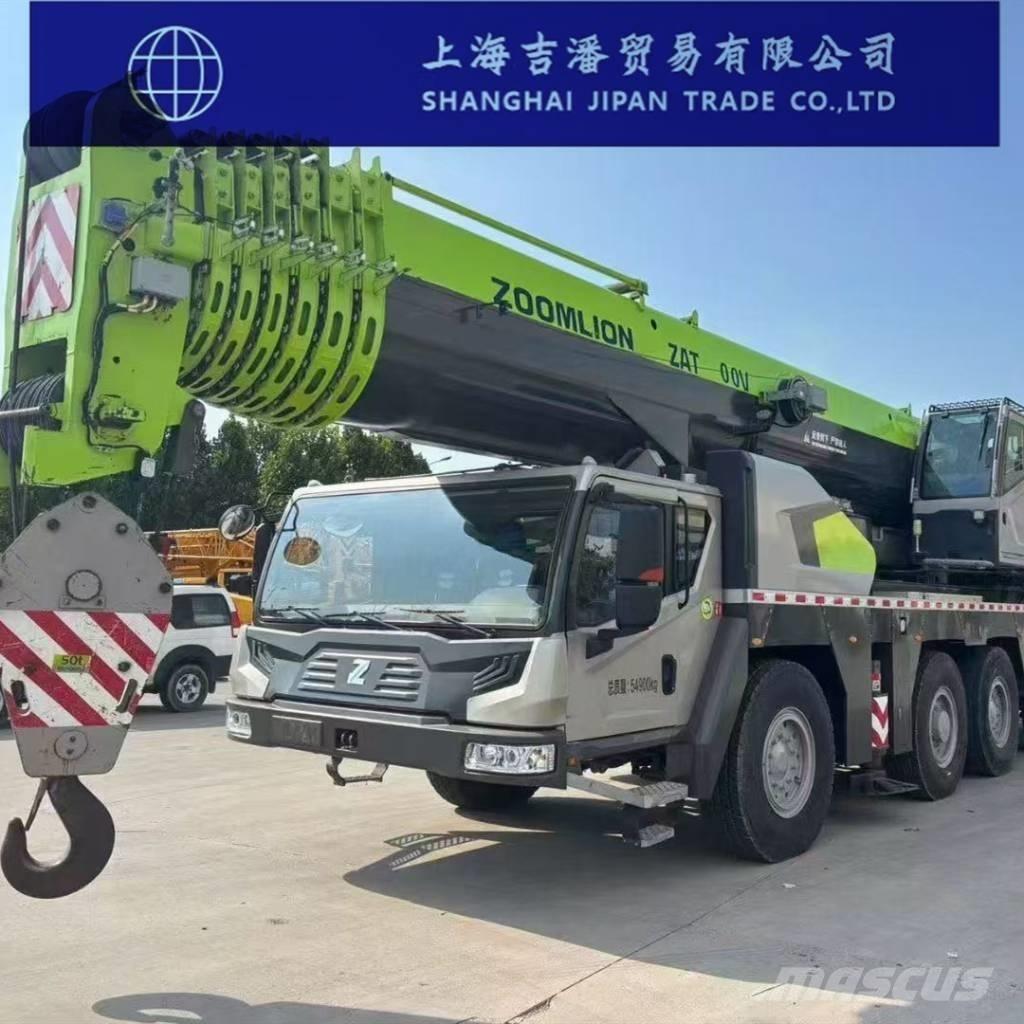

中联重科 ZAT 2000 V7

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter details The maximum rated total lifting capacity is 200,000 kg The maximum lifting moment of the basic boom is 6,664 kN · m (with an 8m amplitude). The maximum lifting height of the main boom is 72 meters The maximum lifting height of the auxiliary boom is 95 meters (103 meters when with an extended boom). The maximum speed of the main hoist single rope is 120m/min (four layers) The maximum speed of the single rope of the auxiliary hoist is 70m/min (four layers) The boom extension time is 12 minutes (related to temperature and engine speed) The boom lifting time is 97 seconds The rotational speed is 0 to 1.4r/min The maximum operating altitude is 2,000 meters The maximum driving speed is 75km/h The maximum climbing gradient is 40% The minimum turning diameter is 20 meters Minimum ground clearance: 305mm The exhaust emission limits comply with the GB3847-2005 and GB17691-2005 National V standards The economic fuel consumption is 78 liters per 100 kilometers The self-weight (total mass) during driving is 54,900 kg The overall dimensions (length × width × height) are 15660×3000×4000mm The longitudinal distance of the outriggers is 8.9 meters The lateral distance of the outriggers is 8.3 meters The main arm is 13.4 to 72 meters long The elevation Angle of the main arm is -0.5 to 83 degrees The lengths of the secondary arms are 12 meters, 20 meters and 28 meters Auxiliary arm + extended arm 36m (optional) The installation angles of the auxiliary arm are 0°, 15°, and 30° Chassis model: ZLJ5602JQZV5.1 Engine model: WP13.530E50 Rated power 390kW (at 2100r/min) Maximum net power: 385kW (at 2100r/min) Maximum output torque: 2220N · m (at 1200 to 1500r/min)
