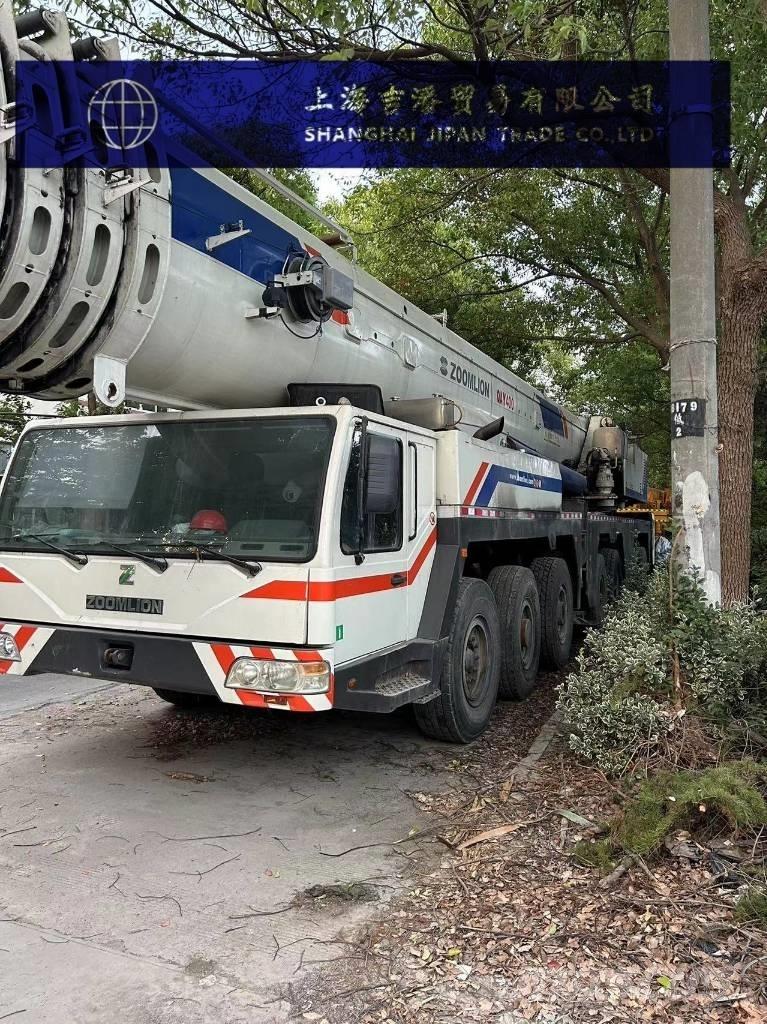

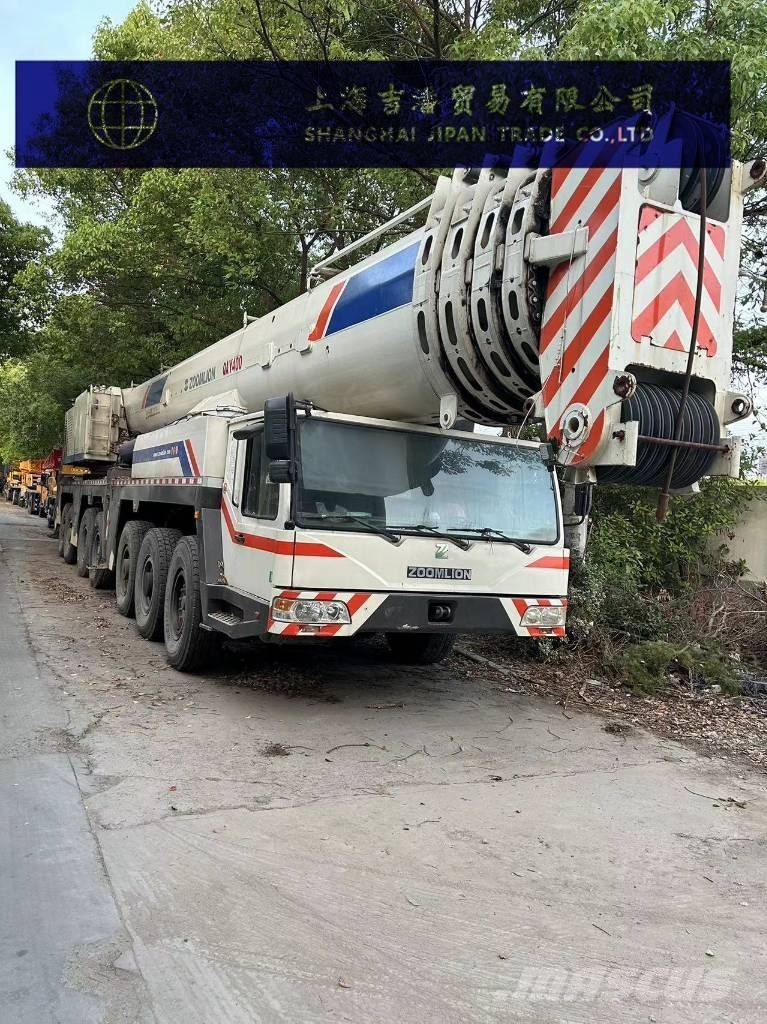

中联重科 QAY 400

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter configuration of Zoomlion QAY400 crane Lifting capacity Maximum rated lifting capacity (t) : 400 Maximum rated lifting moment (KN.m)1200 Minimum working range (m)3 Maximum lifting height - fully extended boom (m)70.5 Maximum lifting capacity (tons) : 301-400 tons Maximum lifting capacity (tons) : 301-400 tons Boom size The basic number of arm segments is 6 The cross-section of the boom is elliptical Boom length - basic boom (m)15 Boom length - fully extended boom (m)70 Length of the auxiliary boom (m) : 42(fixed auxiliary boom), 78(tower boom) Engine Rated power (kw/rpm) : 450/1800 Rated power (kw/rpm)240/2200 Operation speed parameter The luffing time of the boom (s) is 90 The full extension time of the boom (in seconds) is 600 Maximum rotational speed (r/min) : 0-1.5 The maximum lifting speed of the main hoist (m/min) is 130(for the fourth layer) Maneuverability performance parameters Maximum driving speed (km/h)75 Maximum climb gradient (%)42 Approach Angle/departure Angle (°)16.3 Minimum ground clearance (mm)355 Overall machine specification The total length of the entire machine is 19,320 mm The full width of the entire machine (mm) is 3000 The total height of the entire machine (mm) is 4000 Working weight (t)84 Total counterweight (t)120/140 Outrigger span Longitudinal × transverse (m)9840*9000
