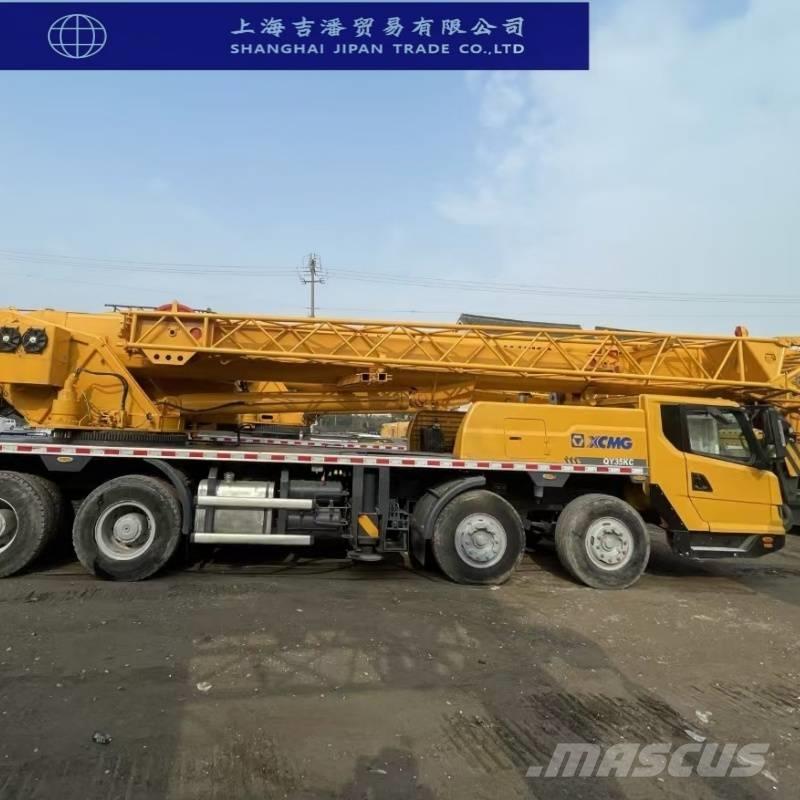

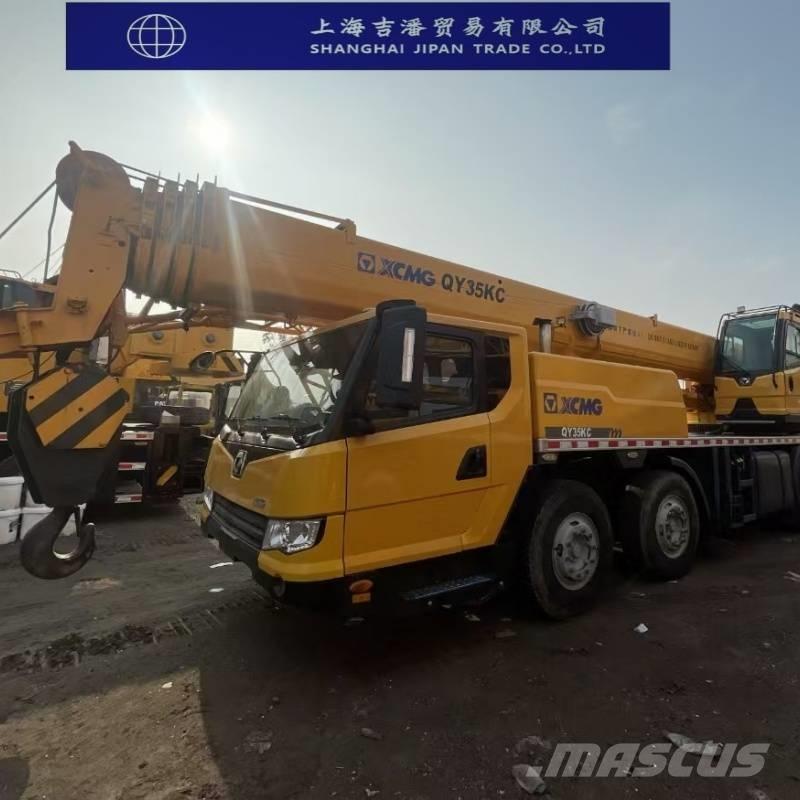

徐工 QY 35 K

Fly Jib ,Hook ,Counter Weight, ETC. We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Fly Jib ,Hook ,Counter Weight, ETC. Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Dimensional Parameters Overall length: 12620mm Overall width: 2500mm Overall height: 3350mm Weight Parameters Operating condition total mass: 36930kg Front axle load: 12330kg Rear axle load: 24600kg Power Parameters Engine model: SC9DK320Q3 Rated engine power: 235kW / 2200r/min Rated engine torque: 1250N・m / 1400r/min Driving Parameters Maximum driving speed: 75km/h Minimum turning diameter: 19.5m Minimum ground clearance: 260mm Approach angle: 17° Departure angle: 15.7° Maximum climbing capacity: 40% Fuel consumption per 100km: 30L Main Performance Parameters Maximum rated total lifting capacity: 35t Minimum rated radius: 3000mm Swing tail radius: 3.055m Maximum lifting moment: 1200kN・m Basic boom length: 10.5m Maximum main boom length: 39.6m Maximum main boom + jib length: 54.6m Working Speed Parameters Boom luffing time: 68s Boom full extension time: ≤155s Maximum swing speed: ≥2.5r/min Maximum speed of main hoisting mechanism (single rope): ≥130m/min Maximum speed of auxiliary hoisting mechanism (single rope): ≥130m/min If it is the QY35K (non-K5 version), its parameters are as follows: Working Performance Parameters Maximum rated total lifting capacity: 35000kg Maximum lifting moment of basic boom: 1166kN・m Maximum lifting moment of longest main boom: 644.7kN・m Maximum lifting height of basic boom: 10.5m Maximum lifting height of main boom: 33m Maximum lifting height of jib: 48.7m Working Speed Parameters Maximum single-rope speed (main winch): 85/110m/min (3rd layer) Maximum single-rope speed (auxiliary winch): 80/100m/min (3rd layer) Boom raising time: 80s Boom extension time: 100s Swing speed: 2r/min Driving Parameters Maximum driving speed: 72km/h Maximum climbing gradient: 30% Minimum turning diameter: 24m Minimum ground clearance: 260mm Weight Parameters Operating condition self-weight (total mass): 32300kg Front axle load: 11150kg Rear axle load: 21150kg Dimensional Parameters Overall dimensions (length × width × height): 12613×2500×3380mm Outrigger longitudinal distance: 5.35m Outrigger transverse distance: 6.0m Main boom length: 10.5m, 33m Jib length: 15.7m Power Parameters Engine model: WD615.67A Rated power: 206kW / 2200r/min Maximum output torque: 1100N・m / 1400r/min
