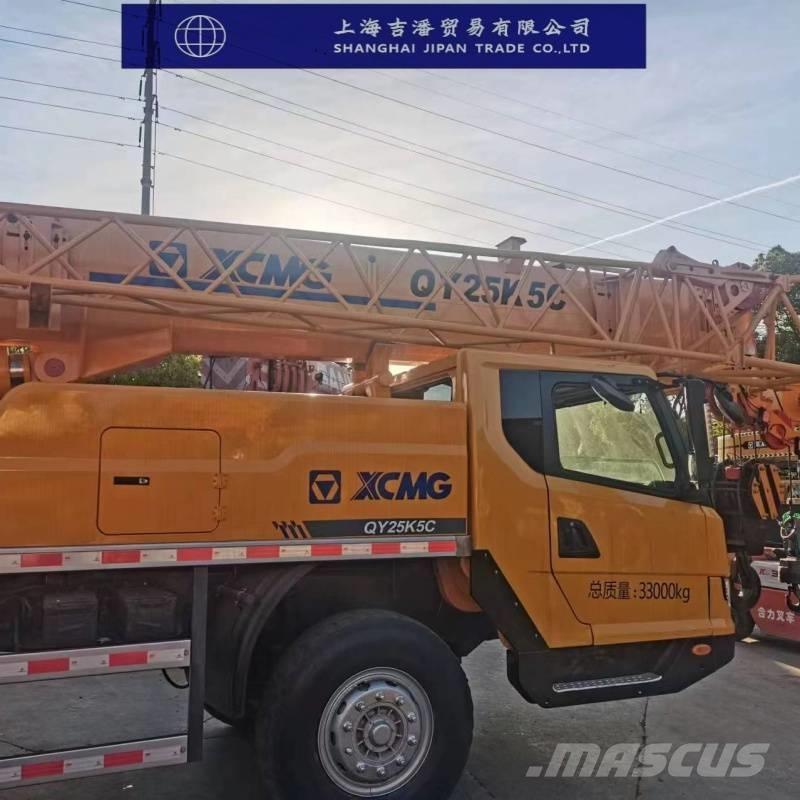

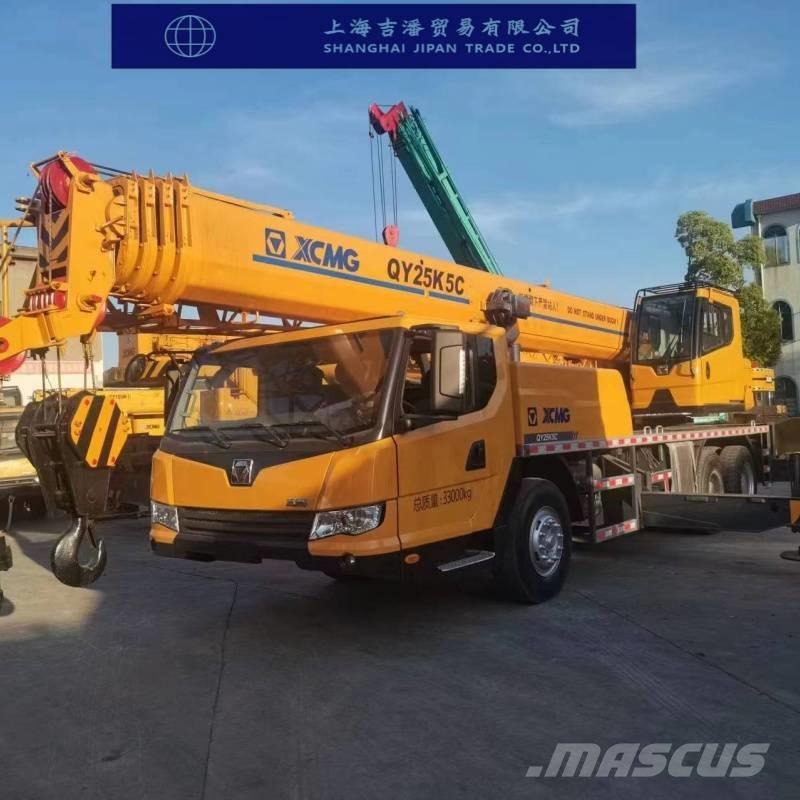

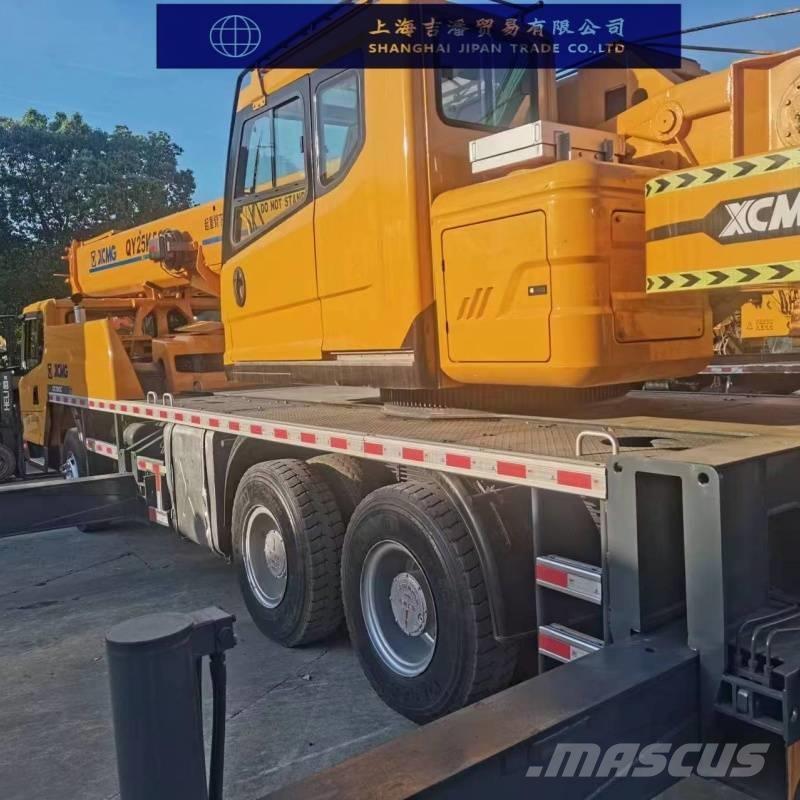

徐工 QY 25 K

Fly Jib ,Hook ,Counter Weight, ETC. We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Fly Jib ,Hook ,Counter Weight, ETC. Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Dimensional Parameters: Overall length: 12550mm Overall width: 2500mm Overall height: 3380mm Weight Parameters: Operating weight: 29400kg Front axle load: 6200kg Rear axle load: 23200kg Power Parameters: Optional engine models: SC8DK280Q3 or WD615.329 (National III Emission Standard) Rated power: 206kW/2200r/min and 213kW/2200r/min respectively Rated torque: 1112N・m/1400r/min and 1160N・m/1400r/min respectively Driving Parameters: Maximum driving speed: 75km/h Minimum turning diameter: 22m Minimum ground clearance: 260mm Approach angle: 16° Departure angle: 13° Maximum climbing capacity: 30% Fuel consumption per 100km: approximately 37L Main Performance Parameters: Maximum rated total lifting capacity: 25t Minimum rated radius: 3000mm Tail swing radius of turntable: 3.065m Maximum lifting torque: 1000kN・m Basic boom length: 10.6m Maximum main boom length: 33m Maximum main boom + jib length: 41.15m Longitudinal distance of outriggers: 5.14m Transverse distance of outriggers: 6m
