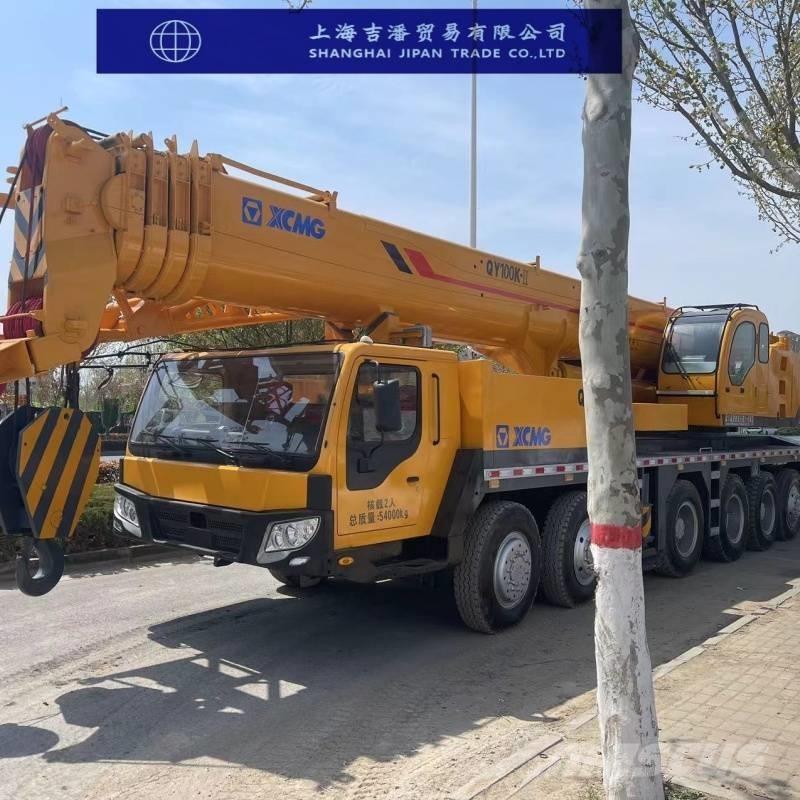

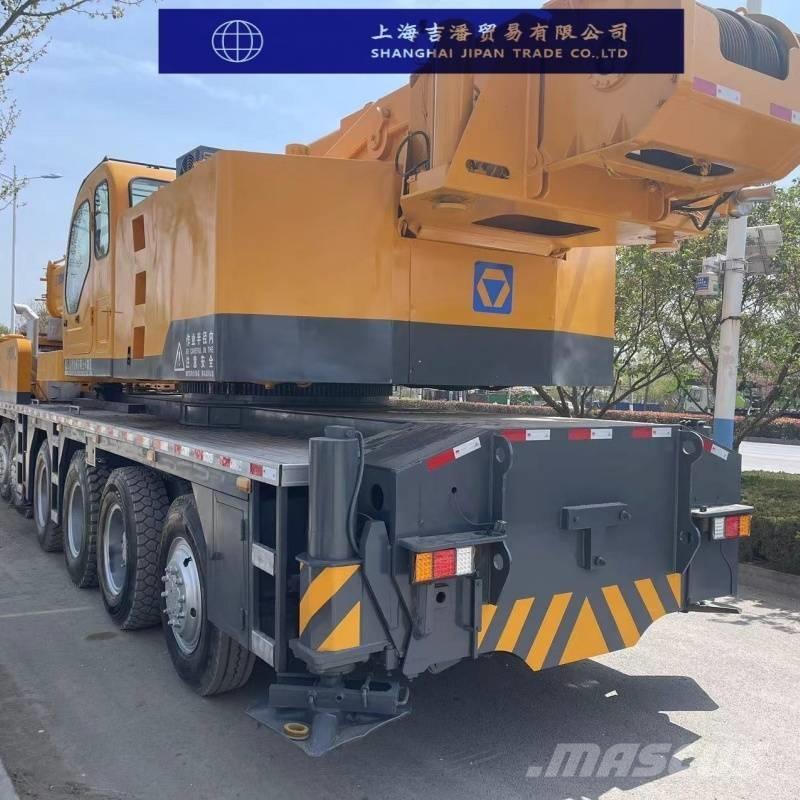

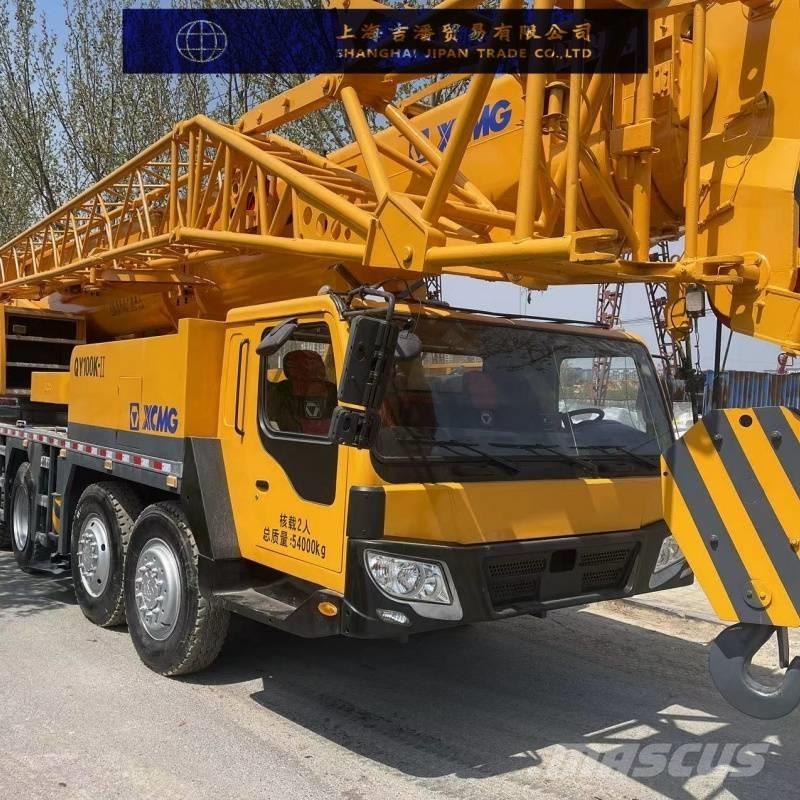

徐工 QY 100 K

Fly Jib ,Hook ,Counter Weight, ETC. We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Fly Jib ,Hook ,Counter Weight, ETC. Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Basic Parameters Maximum Rated Total Lifting Capacity: 100 tons Minimum Rated Radius: 3 meters Dimension Parameters Overall Length of the Machine: 15,230 mm Overall Width of the Machine: 3,000 mm Overall Height of the Machine: 3,860 mm Wheelbase: 1420 + 2420 + 1700 + 1420 + 1505 mm Weight Parameters Total Mass in Driving State: 65,000 kg Axle Load: 1st axle 9,000 kg; 2nd axle 10,000 kg; 3rd axle 12,500 kg; 4th axle 13,000 kg; 5th axle 13,000 kg; 6th axle 8,500 kg Power Parameters Rated Power of Engine: 324 kW / 1,800 rpm Rated Torque of Engine: 2,100 N·m / 1,200 rpm Driving Parameters Specific Power: 7.3 kW/ton Minimum Ground Clearance: 310 mm Approach Angle: 23° Departure Angle: 15° Braking Distance (at 30 km/h): ≤ 10 meters Maximum Climbing Gradient: 40% Fuel Consumption per 100 km: 70 liters Boom Parameters Boom Length - Basic Boom: 12.8 meters Boom Length - Fully Extended Boom: 48.8 meters Boom Length - Basic Boom + Jib: 66.9 meters Jib Length: 18 meters Working Speed Parameters Jib Installation Angle: 0°, 15°, 30° Boom Luffing Time - Lifting: 60 seconds Boom Telescoping Time - Full Extension/Retraction: 140 seconds Maximum Swing Speed: 2 rpm Outrigger Telescoping Time - Horizontal Outriggers (Simultaneous Extension/Retraction): 25/15 seconds Outrigger Telescoping Time - Vertical Outriggers (Simultaneous Extension/Retraction): 45/25 seconds Hoisting Speed (Single Rope, 4th Layer) - Main Hoisting Mechanism: 110 meters/minute Hoisting Speed (Single Rope, 4th Layer) - Auxiliary Hoisting Mechanism: 85 meters/minute Lifting Moment Parameters Maximum Lifting Moment - Basic Boom: 3,238 kN·m Maximum Lifting Moment - Longest Main Boom: 1,670 kN·m Maximum Lifting Moment - Longest Main Boom + Jib: 1,127 kN·m
