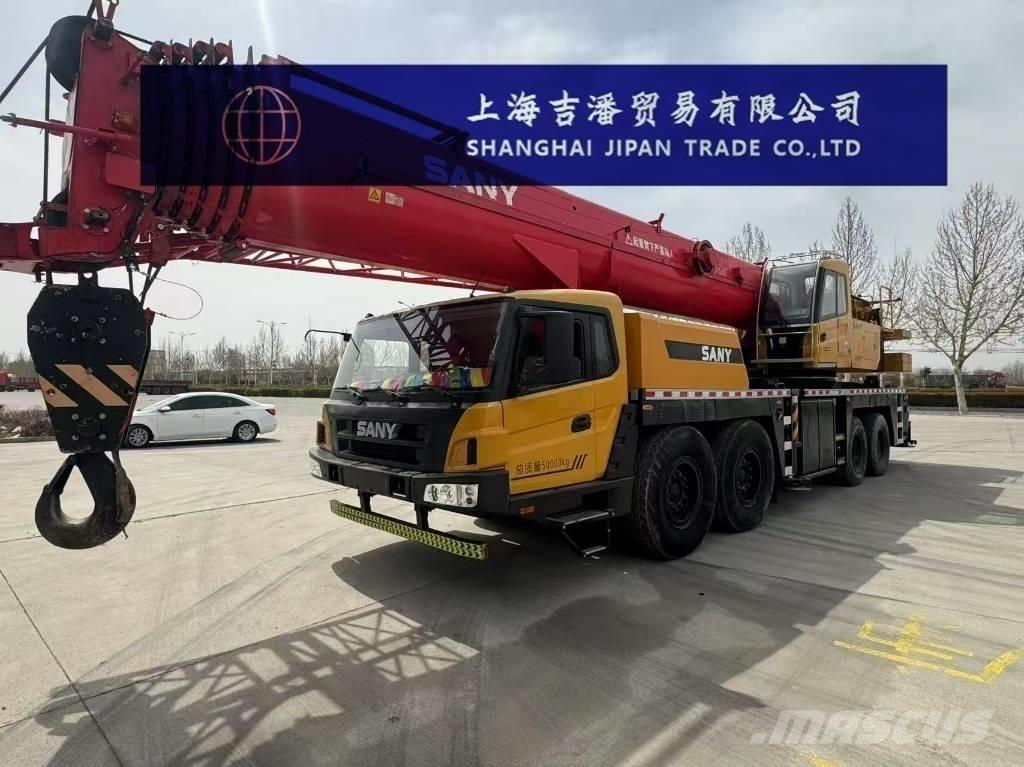

三一重工 STC 800 T5

Fly Jib,Hook,Counter Weight We're from Shanghai Jipan Trade Co.,Ltd.I'm the Sales Manager, specializing in selling used machines from various brands, including excavators,truck cranes,crawler cranes,and so on.With extensive export experience, our machines are sold well in Europe, America, Africa,and other regions, receiving rave reviews and a high repurchase rate. We uphold the principles of integrity and quality, and have a professional service team to provide you with one-stop service, ensuring accurate, efficient, and safe delivery of your machines.We are committed to building long-term relationships with every customer from around the world with competitive prices and superior quality. Contact: Jason WhatsApp/Mobile:0086 13675656717 WeChat:+86 13675656717 Shipping Method: Container Vessel, Bulk Carrier, Flatbed Vessel, or RoRo Vessel.If you don't have your own shipping agent, we can ship on your behalf and offer you the lowest possible shipping rates.

Basic performance parameters Maximum lifting capacity:80 tons Maximum main arm length:49.5 meters Maximum lifting height:67 meters Dimensional parameters The total length of the machine is 14,960mm Overall width of the machine: 2800mm Overall height of the machine: 3985mm Outrigger span (transverse × longitudinal):8/5.27×6.55m Weight parameter The total weight of the entire machine is 50,000 kg Counterweight: 30t Power parameters Engine model: Weichai WP12.400E62 Engine power:294/1900kW/rpm Engine output torque:1920/1000-1400N·m/rpm Driving parameters Driving speed:80km/h Minimum turning radius:12 meters Slope:42% Approach Angle:≥10° Departure Angle:≥13° Working speed parameter The single-rope speed of the main hoist is 135 meters per minute Full extension/retraction time of the boom:130/150 seconds The full lifting/lowering time of the boom:65/95 seconds Rotary speed:1.6r/min
