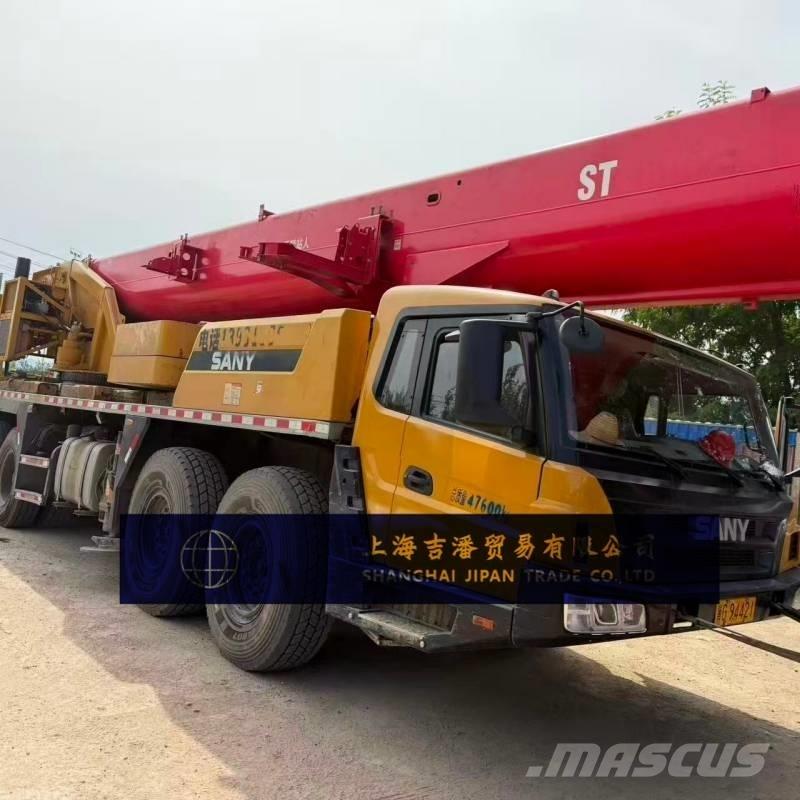

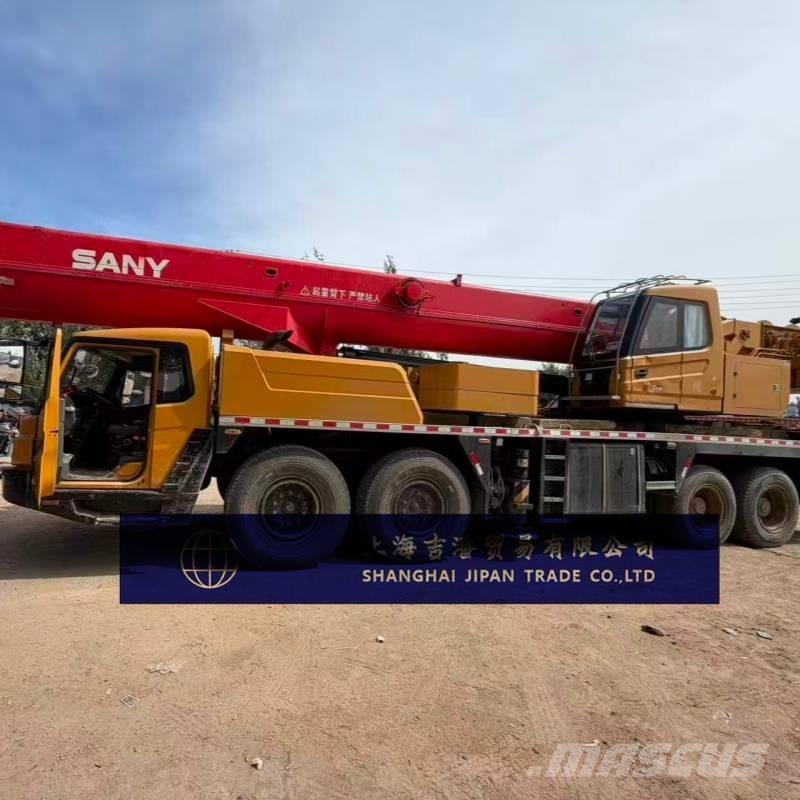

三一重工 STC 800 E 5

Fly Jib,Hook,Counter Weight We're from Shanghai Jipan Trade Co.,Ltd.I'm the Sales Manager, specializing in selling used machines from various brands, including excavators,truck cranes,crawler cranes,and so on.With extensive export experience, our machines are sold well in Europe, America, Africa,and other regions, receiving rave reviews and a high repurchase rate. We uphold the principles of integrity and quality, and have a professional service team to provide you with one-stop service, ensuring accurate, efficient, and safe delivery of your machines.We are committed to building long-term relationships with every customer from around the world with competitive prices and superior quality. Contact: Jason WhatsApp/Mobile:0086 13675656717 WeChat:+86 13675656717 Shipping Method: Container Vessel, Bulk Carrier, Flatbed Vessel, or RoRo Vessel.If you don't have your own shipping agent, we can ship on your behalf and offer you the lowest possible shipping rates.

Lifting capacity parameters Maximum rated lifting capacity:80 tons Maximum rated lifting moment: 3410kN·m Maximum rated lifting moment for fully extended boom:1999.2kN·m Maximum lifting height - basic boom + auxiliary boom:78 meters Crane boom size parameters Basic number of arm segments:5 Crane boom cross-sectional type:U-shaped Boom length - Fully extended boom:50 meters Operation speed parameter The maximum lifting speed of the main hoist is 130m/min The maximum lifting speed of the auxiliary hoist is 130m/min Full extension time of the boom:125 seconds Full retraction time of the boom:130 seconds The full lifting time of the boom:60 seconds The full lowering time of the boom:90 seconds Rotational speed:1.8rpm Engine parameters Chassis engine model: Weichai WP12.375E50 (National V)/Weichai WP12.400E62 (National VI) Rated power: 276kW/1900rpm (WP12.375E50) 294kW/1900rpm (WP12.400E62 Maximum output torque: 2000N·m/（1000-1400） rpm Driving parameters Maximum driving speed: 90km/h Minimum turning radius:12 meters Maximum climbing gradient:45% Approach Angle/departure Angle:18°/14° Minimum ground clearance: 310mm Overall machine specification parameters The total length of the machine is 15,000mm Overall width of the machine: 2800mm Overall height of the machine: 3880mm Working weight:50 tons Total counterweight:20.2 tons Outrigger span parameter Longitudinal × transverse:6.43 meters ×8 meters
