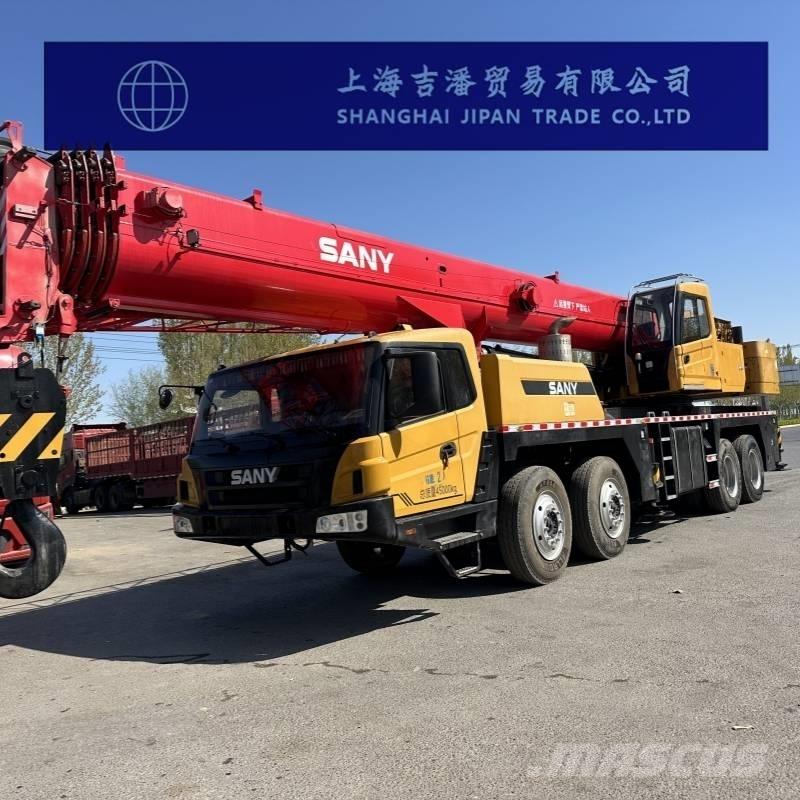

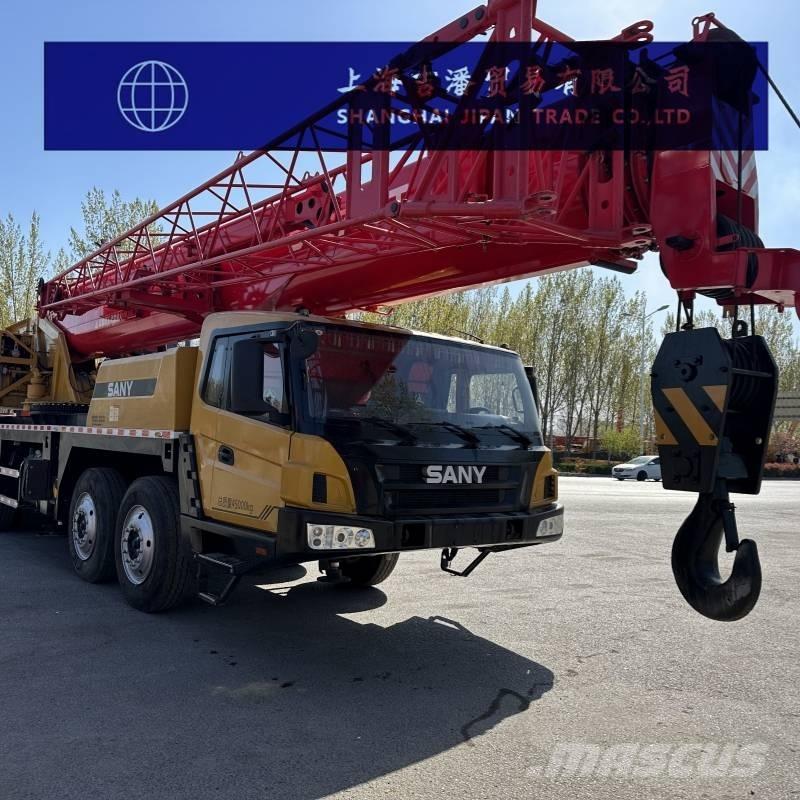

三一重工 STC 700 C

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Sany Heavy Industry STC700T crane parameter configuration Lifting capacity Maximum rated lifting capacity (t) 70 The maximum rated lifting torque (KN.m) is 2916 Maximum lifting height - basic arm Xijib (m) 67 Maximum lifting capacity (tons) 45-90 tons Lifting arm size The basic number of arm joints is 5 The section type of the lifting arm is U-shaped Lifting boom length - full extension arm (m) 49.5 Job speed parameters The maximum lifting speed of the main hoist (m/min) is 130 The total extension time of the lifting boom (s) is 125 Slew speed (rpm) 1.7 motor Chassis engine model Weichai WP9H350E50 Rated power (kw/rpm) 257/1900 Emission Standards State V. Driving parameters Maximum travel speed (km/h) 90 Minimum turning radius (m) 12 Maximum climb (%) 45 Approach/departure angle (°) 18/15 Minimum ground clearance (mm) 268 Specifications of the whole machine The total length of the whole machine (mm) is 15000 The overall width of the whole machine (mm) is 2800 The overall height of the whole machine (mm) is 3860 Operating weight (t) 46 Total counterweight (t) 20 Outrigger span Longitudinal × horizontal (m) 6.31*7.7
