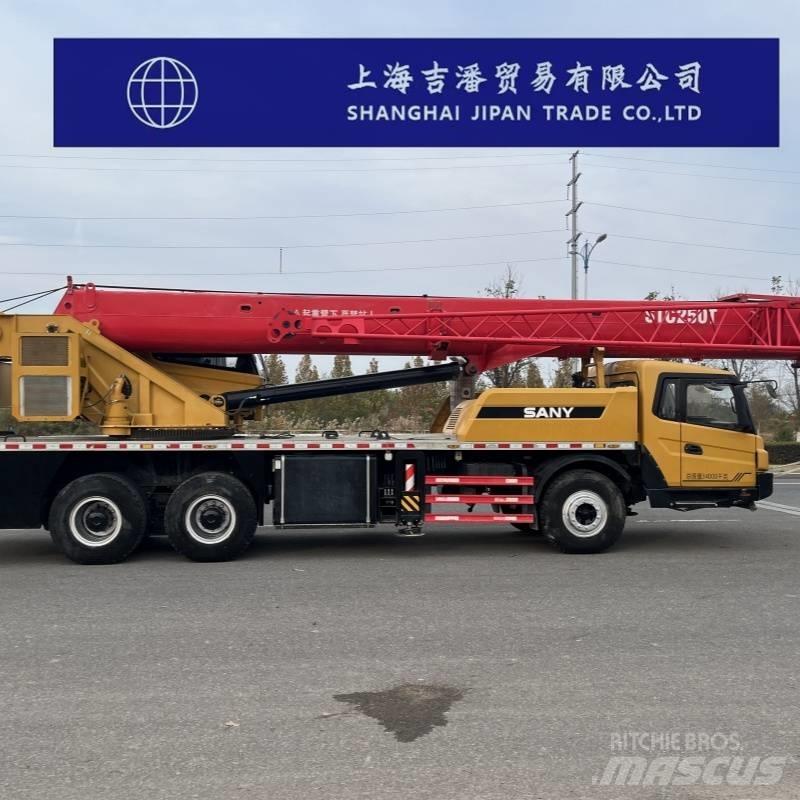

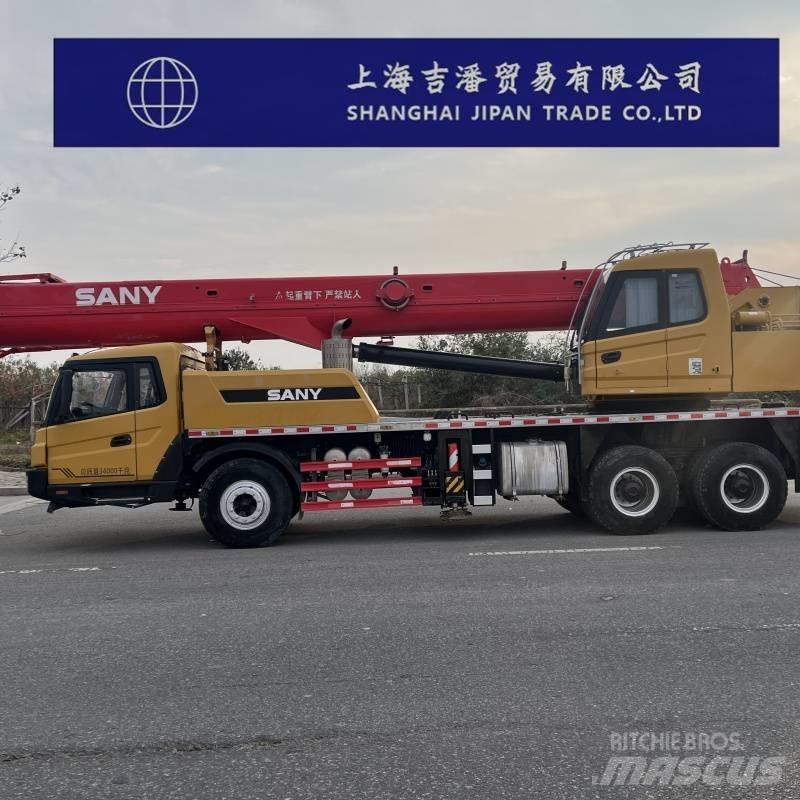

三一重工 STC 250 T

Fly Jib,Hook,Counter Weight,ETC. We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

三一重工STC250T起重机 参数配置 起升能力 最大额定起重量(t)25 最大额定起重力矩(KN.m)1158 最大起升高度-基本臂+副臂(m)51 最大起重量(吨)45吨以下 起重臂尺寸 基本臂节数5 起重臂截面型式U型 起重臂长度-全伸臂(m)42.5 作业速度参数 主卷扬最大起升速度(m/min)135 起重臂全伸时间(s)90 回转速度(rpm)2.7 发动机 底盘发动机型号潍柴WP8.320E51 额定功率(kw/rpm)235/2100 排放标准国Ⅴ 行驶参数 最高行驶速度(km/h)85 最小转弯半径(m)10.5 最大爬坡度(%)45 接近角/离去角(°)10/13 最小离地间隙(mm )260 整机规格 整机全长(mm)13000 整机全宽(mm)2550 整机全高(mm)3590 工作重量(t)34 总配重(t)5.9 支腿跨距 纵向×横向(m)5.4*6.4
