格鲁夫 GMK5240
不含税价格
9
收藏
分享
保存搜索打印
信息
类别
全地面起重机︳移动式起重机
品牌/型号
格鲁夫 GMK5240
生产年份
2002
设备所在位置
Texas, USA, Texas
国家
美国
一般等级
1
2
3
4
5
马斯客 ID
FD825A0B
定价
选择币种
详细信息
内部库存编号
932
最大起重能力
240000 公斤
最大举升高度
6005 厘米
附属装置
https://freecranespecs.com/Grove/GMK5240
其他信息

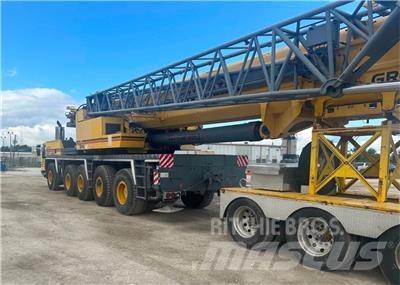

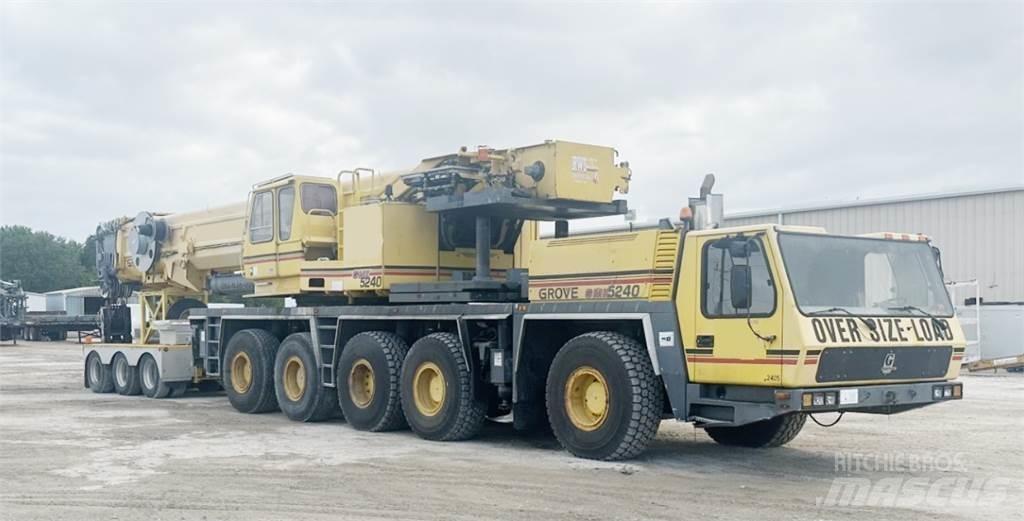

2002 Grove GMK 5240, 240 Ton All Terrain Crane; CranesList ID: 932,
44' - 197' Six section, Full-Power Boom with patented TWIN-LOCK boom pinning system with Auxiliary Lifting Sheave,
43' - 72’ Bi-fold Lattice Swing Away Extension (Jib) Hydraulically Off-settable (5° - 40°),
2 x 28' Jib inserts for a total of 125' of Jib,
Cummins Diesel Engine (Up),
Main and Auxiliary Winches with 22 mm Wire Rope

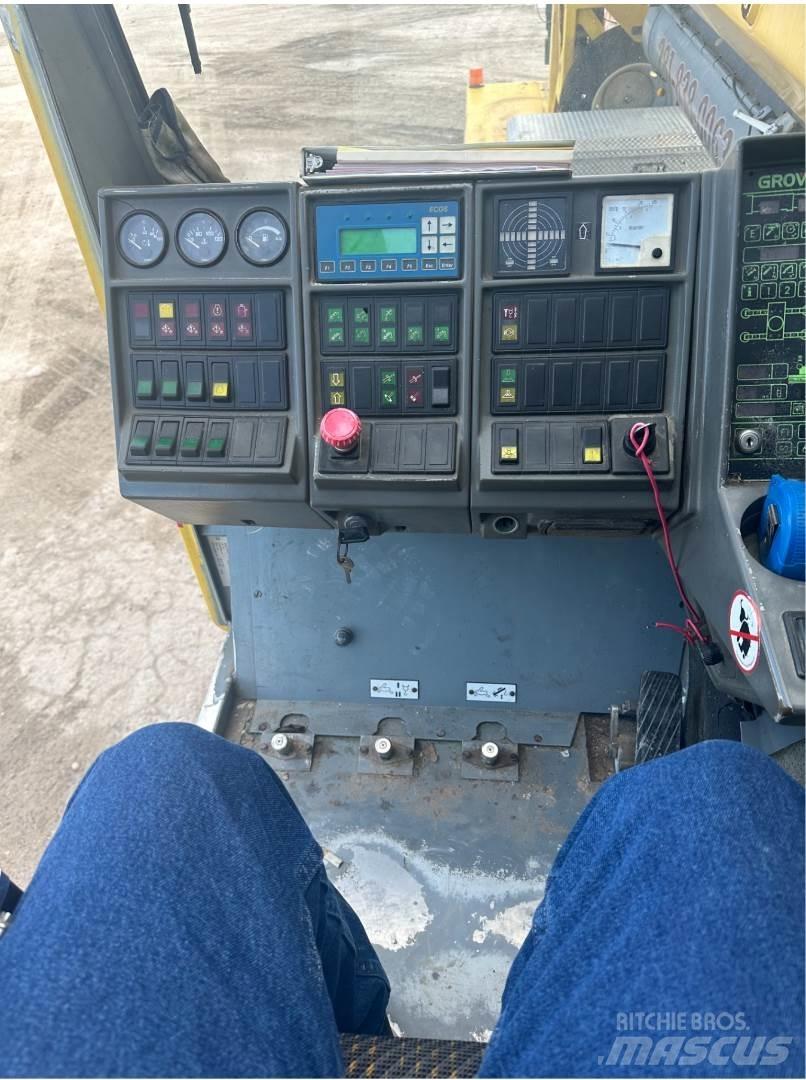

2 Speed, Grove EKS4 Load moment and anti-two block system with ECOS Operating System audio/visual warning and control lever lockout provides electronic display of boom angle, length, radius, tip height, relative load moment, maximum permissible load, load indication and warning of impending two- block condition,
Headache Ball,
125 Ton, Five Sheave Hook Block,
154,300# of Counterweights with hydraulic removal system,
Air Conditioning and Heater in both cabs,
RECENT UPPER SERViCE & REPAIRS - new ecos in 2023 Hours 3432, telescope cylinder was done in 2020, boom lift cylinder was done in 2020, hydraulic hoses for hydraulic hose reel on side of boom were replaced in 2021, replaced wiring harnesses to left and right joysticks in 2022, lower part of seat was replaced 2023, jib wiring and plugs were all replaced in 2023, new fuel shut off solenoid in 2023, re-sealed hydraulic hose drum swivel for jib in 2023, new right arm rest in 2023,
10’ Wide, 5 Axle Grove Carrier,
Cummins Diesel Engine (Down) with Constant Throttle Brake,
Allison Automatic Transmission,
Front and Rear Tires: 20.5R25,
Tri Axle Dolly,
Current 3rd Party Inspection - Kempco Inspection Services,
RECENT LOWER SERViCE & REPAIRS - replaced front steer cylinder in 2022, re-sealed 3 steer cylinders in 2022, replaced all brakes on dolly in 2022, both carrier bearings replaced in 2022, transmission was replaced in August 2023, transmission cooler was removed and cleaned August 2023, replaced old hydraulic hoses around pumps in August 2023, new driveshaft from transmission to drop box in 2023, new planetary input seal and bearing replaced on rear passenger side wheel 2023, new cardon shaft on rear passenger side in 2023, replaced four tie rods on steering links in January 2024, replaced front passenger side suspension cylinder in June 2024,
... IN TEXAS!
