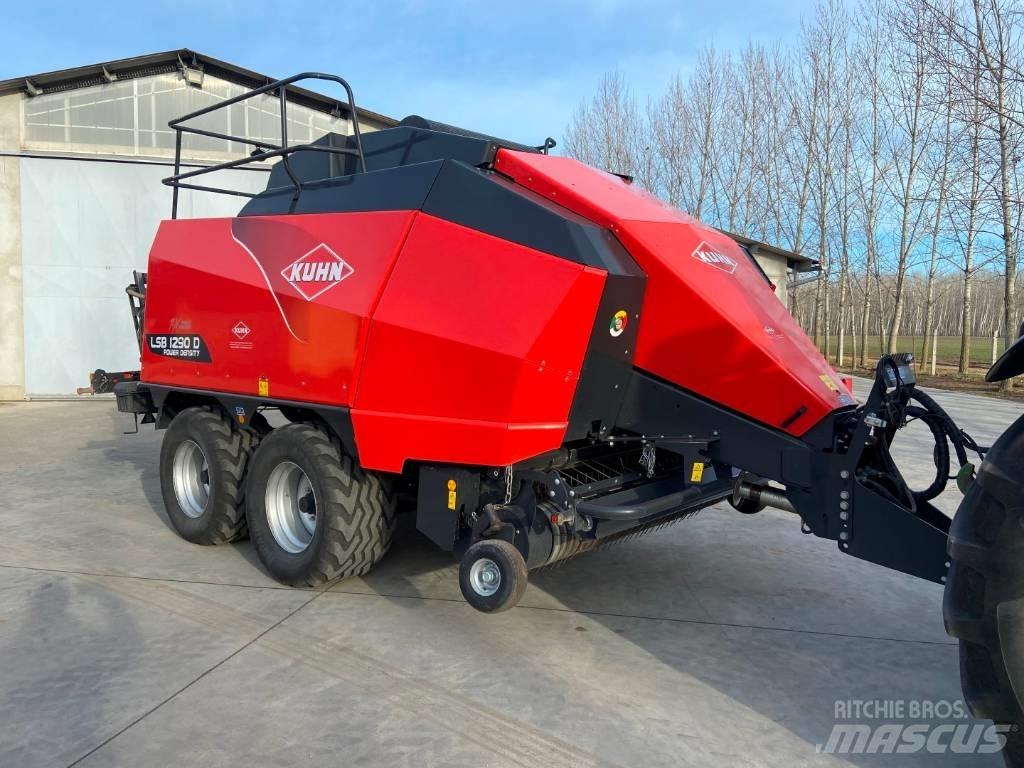

库恩 LSB 1290D
不含税价格
40
1
收藏
分享
保存搜索打印
信息
类别
方捆打捆机
品牌/型号
库恩 LSB 1290D
生产年份
2018
设备所在位置
Bugac
国家
匈牙利
马斯客 ID
D000AA32
定价
选择币种
详细信息
草捆计数
16214
其他信息
The machine was advertised by Agro Partner Magyarország Kft. Contact us for more high-resolution images.
Specifications:
Year: 2018
Total bale count: 16,214
Automatic central greaser
ISOBUS connector
Hydraulic support base
Hydraulic opening-closing
Hydraulically foldable roller bale chute
Cardan shaft speed: max. 1000 rpm
Steered axle
Cleaning of the tying system with high-pressure air
With road lighting
With LED work lights
Tandem axle with leaf spring (parabell) suspension
Air brake system (2 circuits), four braked wheels
Ladder
Strokes per minute: 46
Minimum power requirement: 180 HP
Working speed: 10 - 20 km/h
K80 drawbar or drawbar with interchangeable towing option
Tool box
Rear view camera
560/45-R22.5 Vredestein tires
32 twine storage rolls
Bale size width / height: 120 cm / 90 cm
Bale length: 100 cm - 300 cm

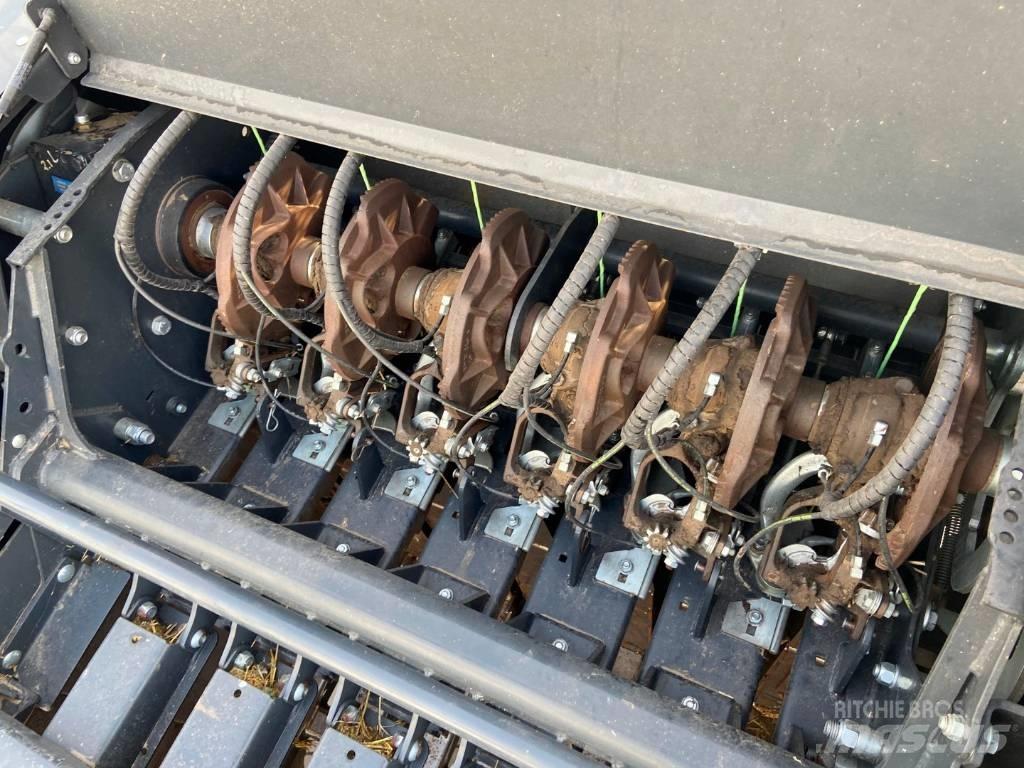

The machine is equipped with two massive hydraulically driven turbo fans as standard, which optimally ensure the cleaning of the tying head during even in the most difficult conditions.
The KUHN POWER DENSITY system, a simple feeder fork design, proves that a well-designed active pre-chamber filling system does not have to be complicated. This pre-chamber system ensures continuous feeding of crop layers, which ensures compact, regular-cornered bales regardless of the quality of the bale. The single feeder fork combines two features in a single mechanism: the elimination of unnecessary components and complexity, and low maintenance costs.
How does it work?
1. The INTEGRAL ROTOR actively feeds the crop into the pre-chamber.
2. The feeder fork actively fills the pre-chamber.
3. The single-acting feeder fork continuously shapes the crop profile until the measuring plate (red) is pressed back against a set pressure.
4. As soon as the measuring plate is pressed back, this activates the second function of the feeder fork system. The fork makes a different movement, which empties the pre-chamber and pushes the perfectly pre-formed crop section into the bale chamber.
Hungarian, from the first owner, in excellent, ready-to-work condition!
Stored under cover throughout.
If you have any questions, please don't hesitate to contact us.
The description is for information only. We reserve the right to make changes, errors and misspellings.显示更多
