库恩 GMD 3123F
不含税价格
27
收藏
分享
保存搜索打印
信息
类别
割草机
品牌/型号
库恩 GMD 3123F
生产年份
2021
设备所在位置
Szabás, Somogy
国家
匈牙利
马斯客 ID
55980E7D
定价
选择币种
详细信息
驱动设置
悬挂式
其他信息

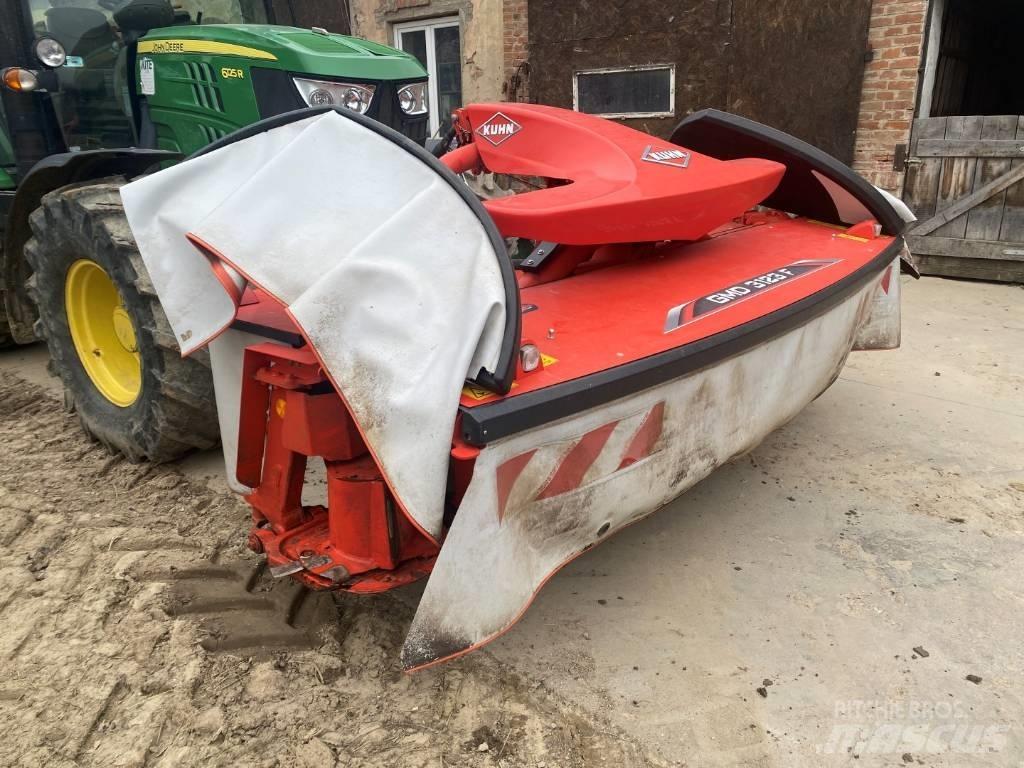

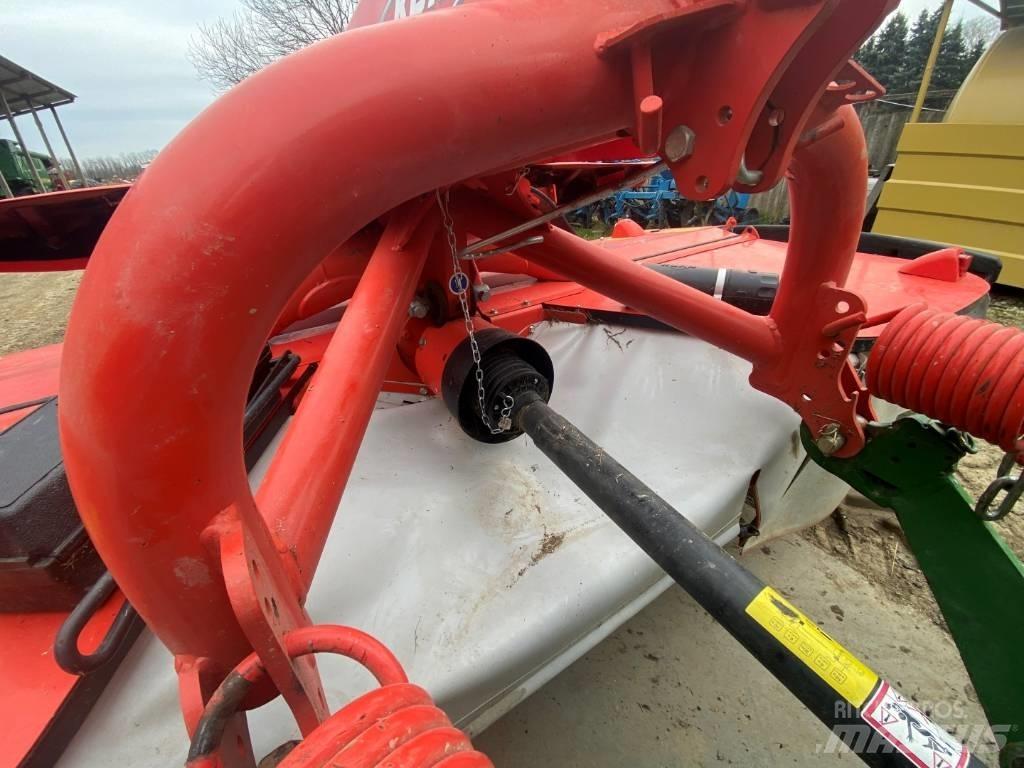

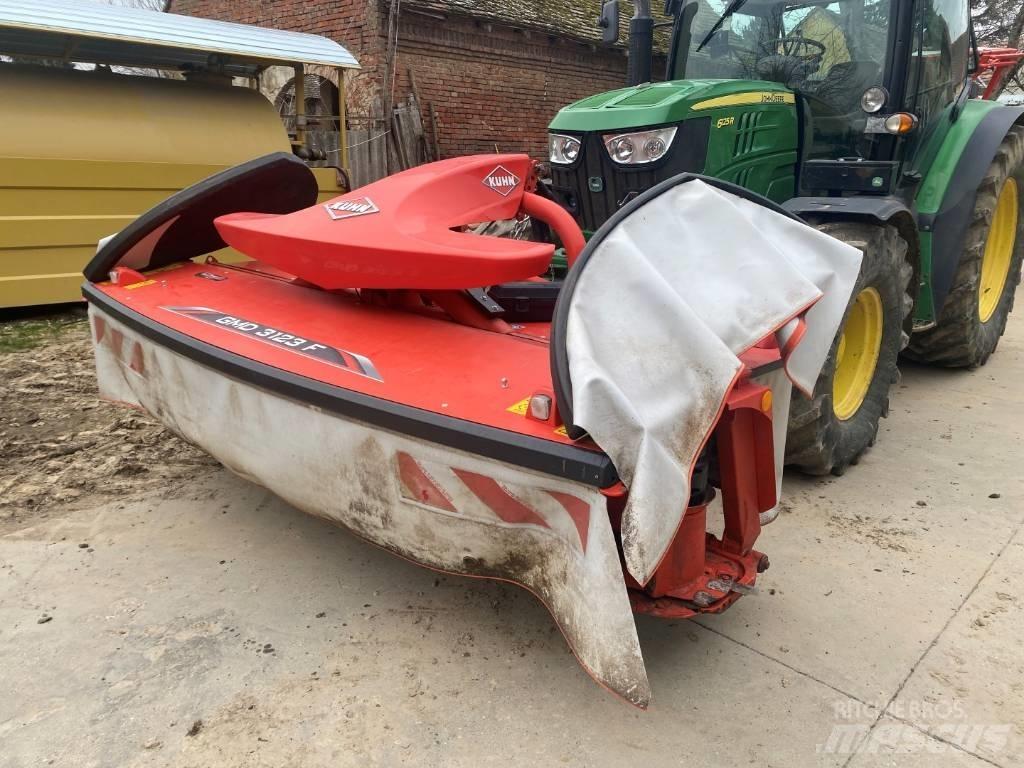

Kuhn GMD-3123F Mower
The GMD 3123 F front mowers are an ideal choice for farmers looking for a lighter machine, who have a tractor around 80 HP. Its compact design and lighter weight allow it to be used on flat fields as well as on hilly terrain. The mower unit effectively follows the ground surface thanks to its +/- 12° pendulum joint movement. It is equipped with two swath deflectors as standard, so the average swath width is between 1.2 and 1.4 meters.
The durability of the most important components of the mower bar is ensured by top-quality components: - Special disc bearings with double-row angular contact ball bearings; - Large-diameter, precision-machined forged steel gears with 3 teeth engaging simultaneously; - Forged and heat-treated discs on their entire surface; - Sliders made of hardened steel, with optional (screw-on) protective plate; - PROTECTADRIVE protection.
Kuhn 3123 F
Technical data:
Year: 2021
Working width per mowing unit (m) 3.10
Overlap of cutting area of front/rear units (cm) 29 - 44 - 55 (GMD 8730) 30 - 50 (GMD 9530)
Swath width (m)1.30 - 1.40
Swath formation 2 swath deflector discs
Hanging device 3-point - Cat. 2
Alfalfa inserts
PTO speed (rpm) Primary 1,000
PTO 1 3 / 8’’ - 6-rib, friction clutch
Freewheel Integrated in side transmission
Cutter bar OPTIDISC ELITE
Number of carbide skid discs 7
Drive protection PROTECTADRIVE system
Suspension Spring (mechanical)
Ground following Pendulum type articulated suspension
Transport width (m) 3.00
Side protection FLEXPROTECT flexible side protection
Storage position Horizontal
Lighting and indicator lights Standard
Minimum PTO power requirement (kW/HP) 32 / 43
Tractor electrical requirement 1 7-pin
Approximate weight (kg) 745
The machine was advertised by Agro Partner Magyarország Kft.
The description is for information only. We reserve the right to make changes, errors and misspellings.显示更多
