Rinieri EB 1532 4

不含税价格

Images5
Rinieri EB 1532 4 前装载配件
Rinieri EB 1532 4 前装载配件
Rinieri EB 1532 4 前装载配件
Favorite收藏
share分享
Save search保存搜索
打印

信息

类别
前装载配件
品牌/型号
Rinieri EB 1532 4
生产年份
2015
附加选项
演示
设备所在位置
Degeberga
国家
瑞典
一般等级
1
2
3
4
5
马斯客 ID
ED5802F0

定价

选择币种

详细信息

内部库存编号
6EB15324
配件类型
干草叉
生产号/编号
28311
运输状态重量
500 公斤
状态/质保
Ingen
制造国
意大利
其他信息

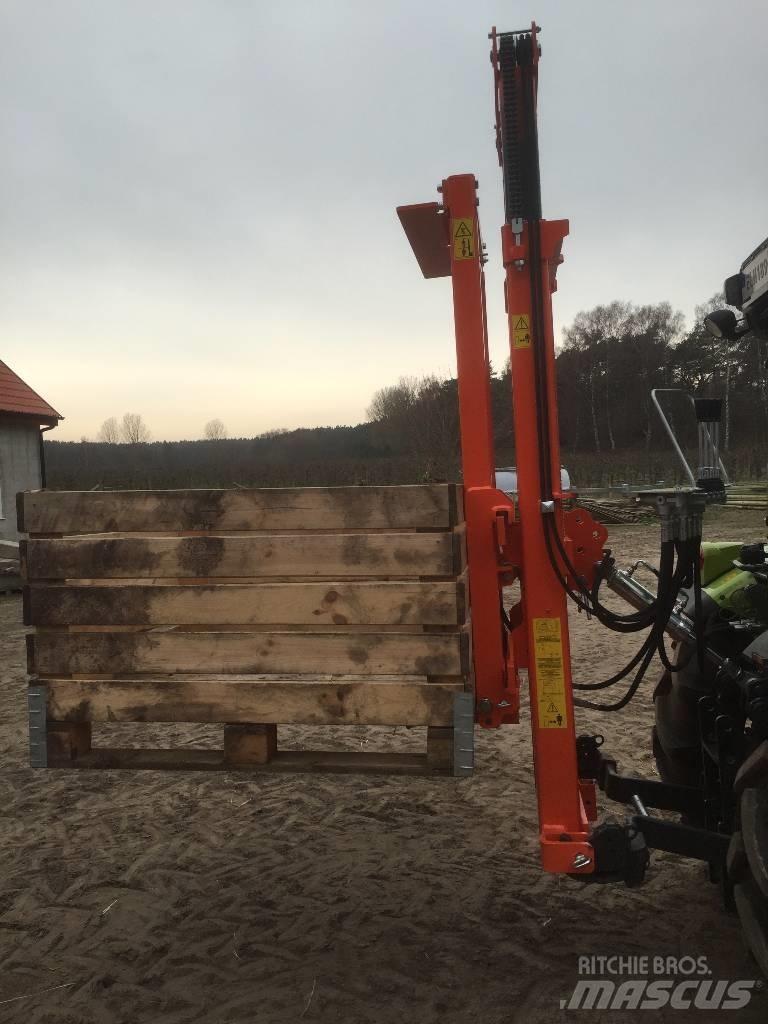

Elevators with hydraulic distributor are specially designed for tractors with three-point linkage through pivot and a shreaded arm. The elevator can function by means of distributor with levers. The needed thrust is setted on by the hydraulic system of the tractor. The elevation function is enabled by action on the hydraulic cylinder togheter with the vertical rods that make the truck slide through the chains. The elevator is equipped with reclining loading forks and security chain for the operator. On demand the folding bins locking is available, the cylinder for folding bins locking the cylinder for the tilting which replaces the threaded arm, the cylinder for the shifting. Specification: Capacity load Max (kg): 1500 Max Elevation (mm) : 3200 Max With (mm): 700 Total With (mm): 840 Side shifting (mm): 100-100 Coupling Height from the ground (mm): 500 Gripper Min. H / Max. H (mm) : 1400 / 2600 Overall dimensions of the mast installed on the tractor (mm): 2410 Hydraulic movements: Lifting + Tilting + Side shift + Bins locking显示更多

Callenbring & CO AB

Julebodavägen 13 29795 Degeberga Skåne län 瑞典
