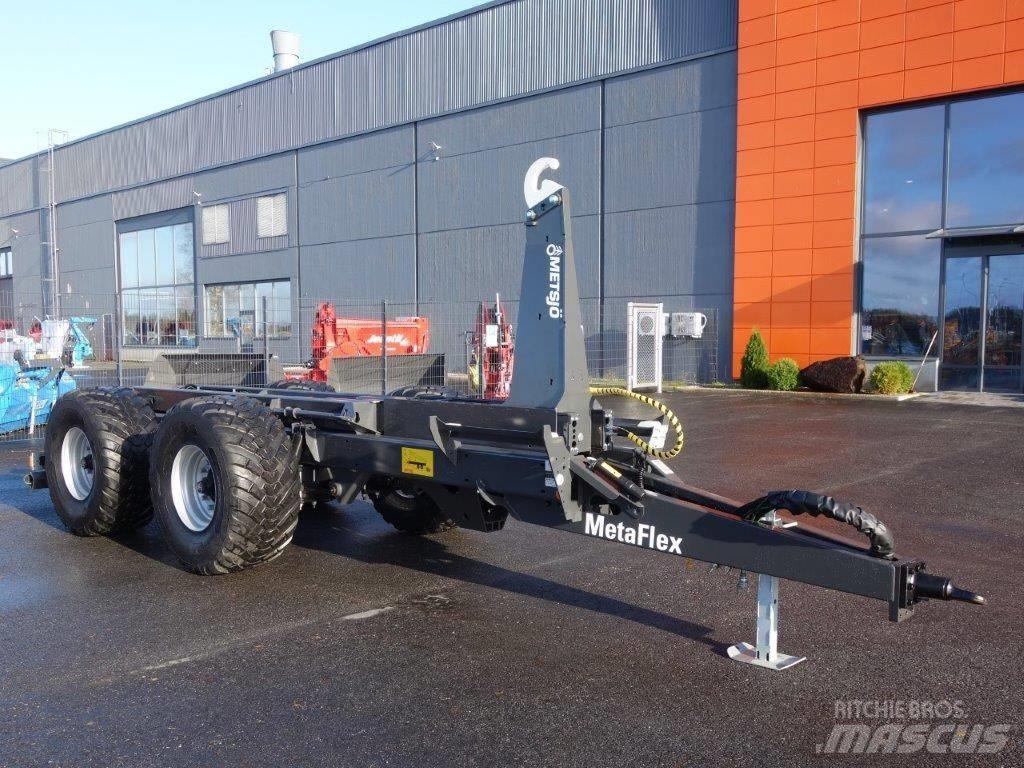

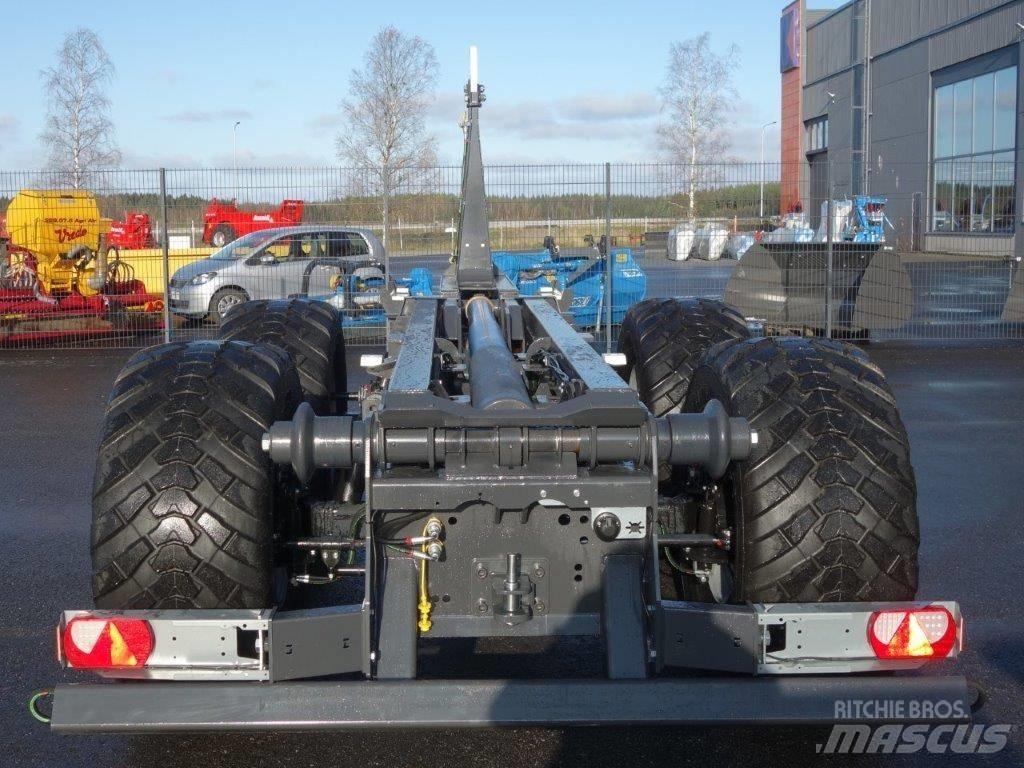

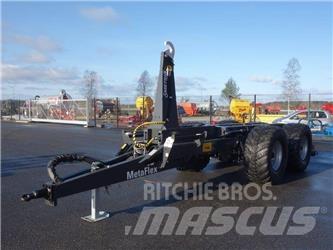

Demonstration hooktrailer - for immediate delivery
Chassis:
2 x BPW 120x120, 10.5 tn 62 kmh axles, Road axle suspension, wheelbase 1810 mm,
rear axle steerable, hydraulic locking,
With self-adjusting brakes 410x120 mm maximum 110 bar pressure,
Hydraulic suspension 350 mm, lift/lower and tilt function
bolted Scharmüller draw eye, max. 3 t towbar weight, hydraulic rear support
The axles are aligned with a laser, the wheels run straight. Platform tilting, lifting/lowering with electricity.
Hydraulics:
1x 3/4" and 2x 1/2" 2-action hydraulics, 1x 3/4" free return, Brake valve,
Oil consumption jumped to 29 l when changing to 18 l. 2-acting 1/2 connectors on the back,
Electric:
12 v, LED lights 12-24 V, Electronic selector switch stage change/tilt,
Electric power switch tower/rear hydraulics, Electric lift/tilt selection (117381)
Dimensions:
Track spacing 2000 mm, Length 7537 mm, Technical total weight 24 tn, Net weight 4300 kg
Surface Treatment:
Sandblasting, Sealing of seams, Epoxy primer 2x70 my, Polyurethane 1x60 my Metsjö gray topcoat,
Corrosion classification C4 L,
Hook device:
according to SIS 3021 (DIN30722) standard, Hook height 1450-1570 mm,
Suitable platform length 5000 - 6500 mm,
